- Product name:veterinary multiparameter monitor
- Display:12.1'' LCD Touch screen
- Parameters::Spo2/Pulse Rate/NIBP/ECG/RESP/TEMP
- Demensions:295W*240D*73H(mm)
- Certification::CE, ROSH, ISO
- Warranty:12 Months
- Power::a.c.100-240V,50/60Hz or 8.4 Li-LON
- Measure mode::Auto, Manual
- N.W:1.75kg
- Power Consumption:< 20W
- Properties:Diagnosis & Injection
- Place of Origin:Guangdong China
- Brand Name:Surgilab
- Model Number:SL-C80-V

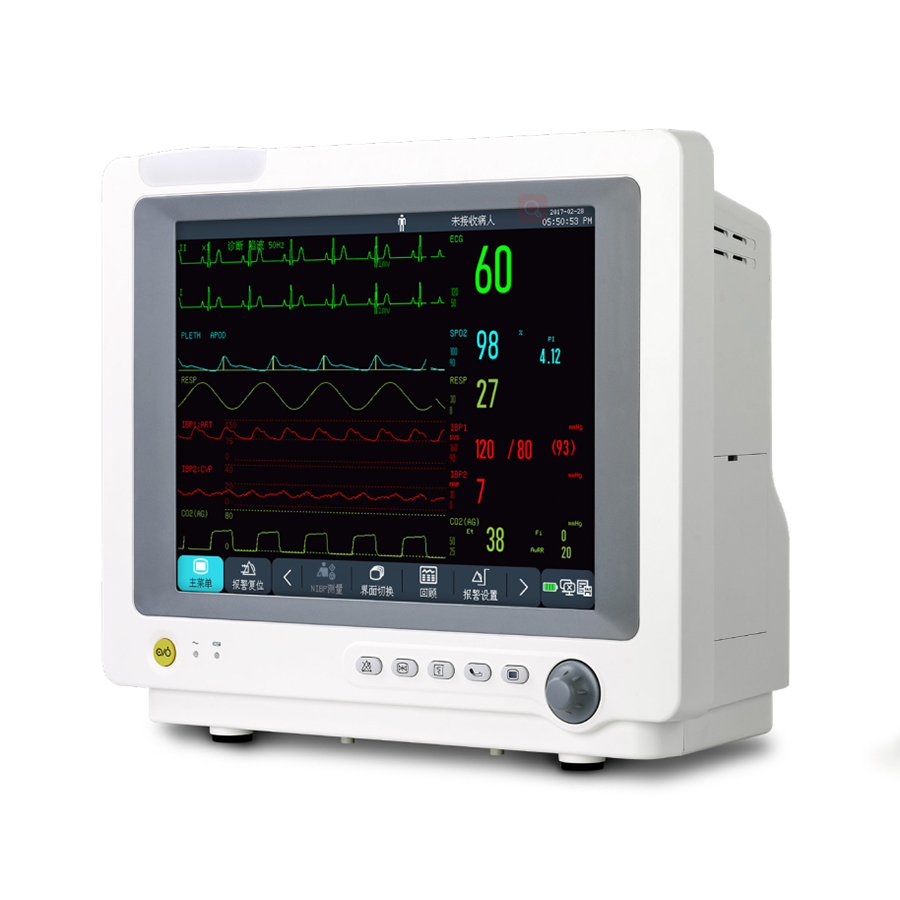

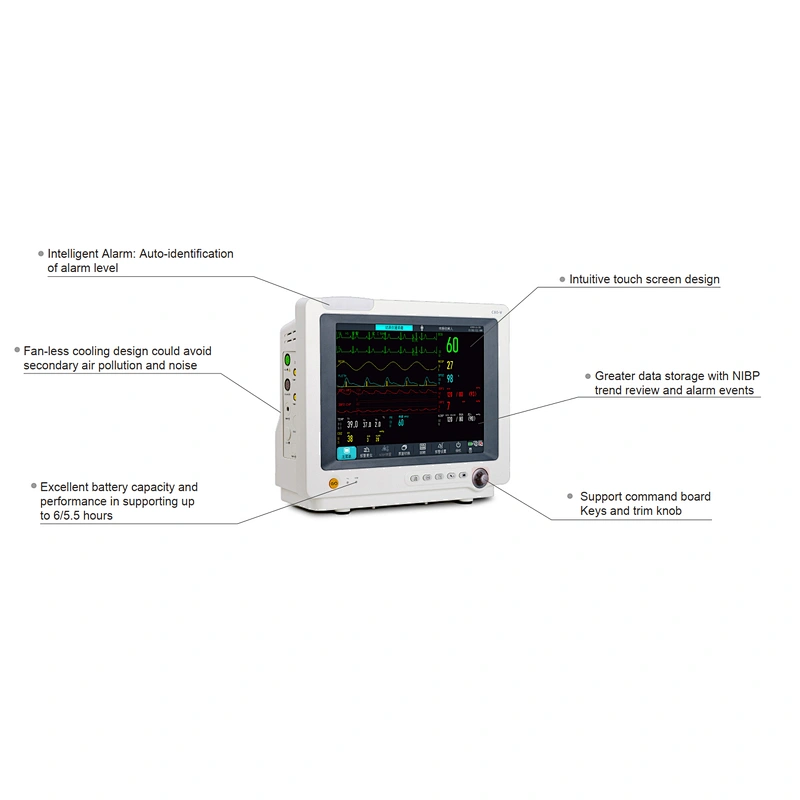

Veterinary monitoring equipment veterinary multiparameter monitor dog cat

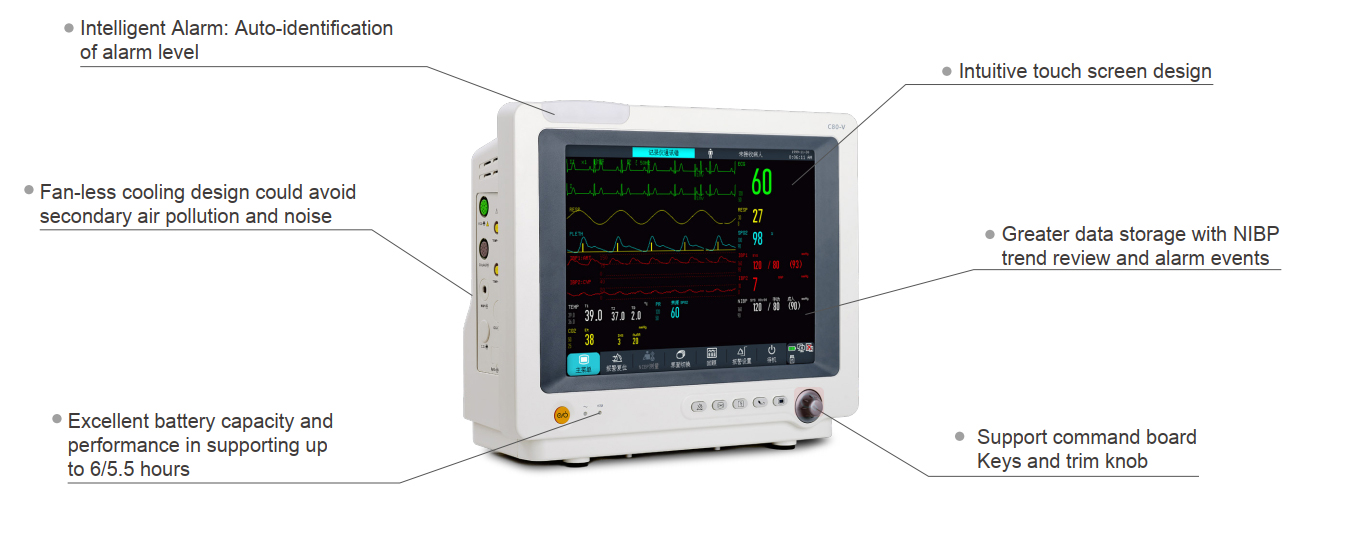

Convenient handle
Multiple mounting solutions
IPX1 waterproof cabinet design
Sturdy housing to withstand rough handling
Standard Configuration: | |
5-lead ECG,RESP,Temp(Single Channel), Comen SpO2,NIBP, HR | |

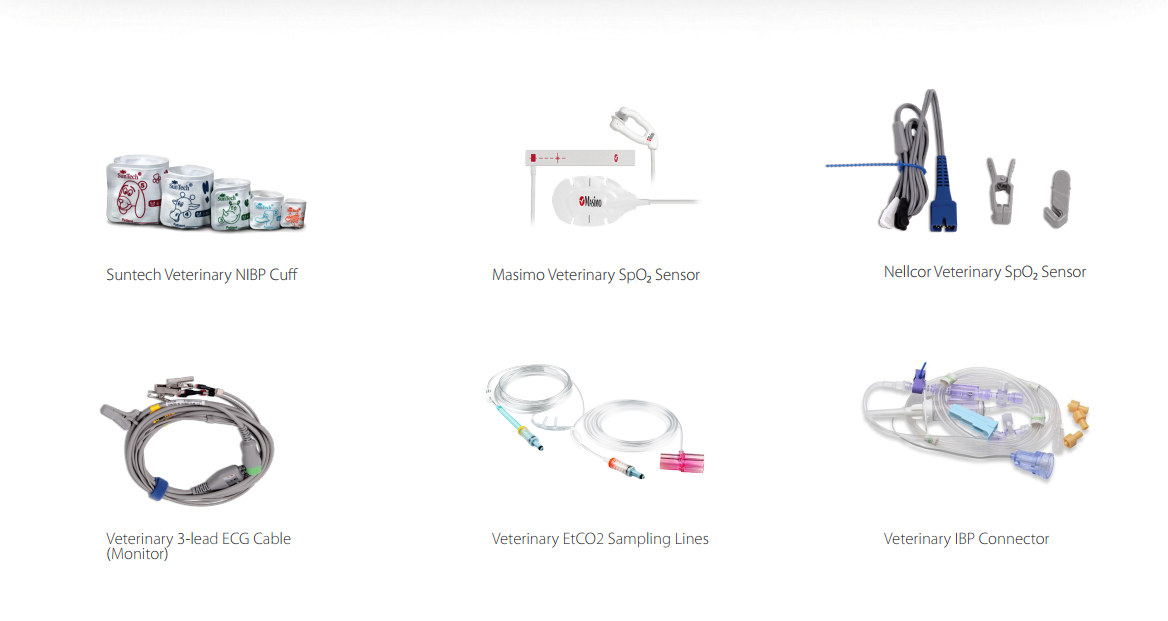

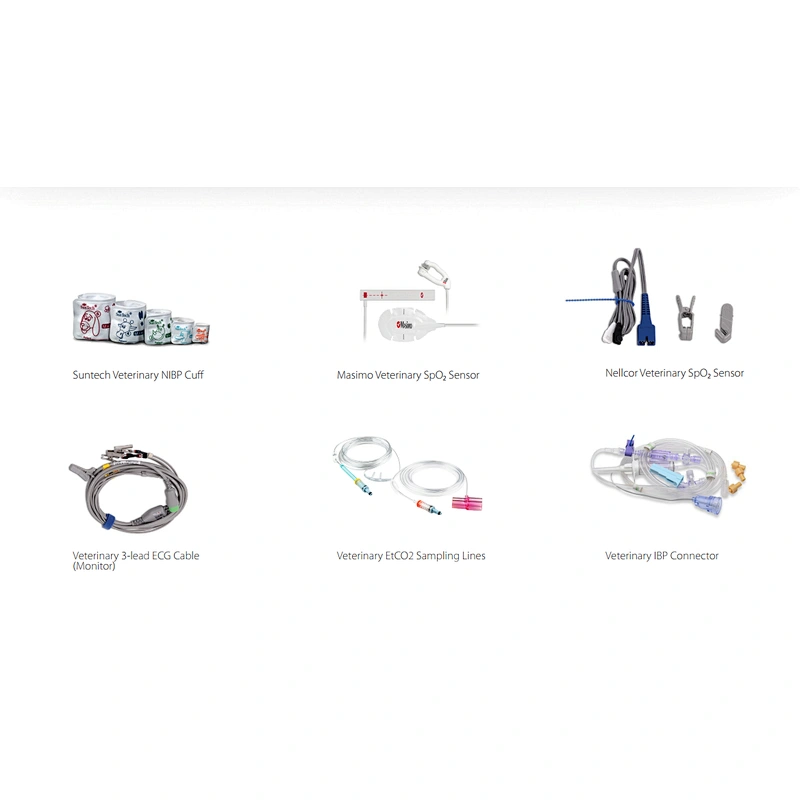

Optional Configuration: | |
Dual-IBP, EtCO2, AG, C.O., Nellcor/Masimo SpO2, Dual-Temp, 3/12-lead ECG,Thermal Recorder, Suntech NIBP, Trolley, Wall mount, Ground wire, | |
Safety Standards: | |
IEC 60601-1 IEC 60601-1-8 IEC 60601-2-27 EN 1060-3 IEC 80601-2-30 IEC60601-2-34 IEC60601-2-49 ISO 80601-2-56 ISO 80601-2-61 | |
Physical Characteristics: | |
Product Size: | 291.7mm×146.5mm×250mm |
Weight: | 3.3kg |
IP grade | IPX1 |
Display: | 10.4” color TFT touch screen |
Resolution: | 800*600 |
Trace: | 8 waveforms |
Operation Environment: | |
working Temperature |
5-40°C |
Humidity: | ≤93% |
Power Supply | 100-240V~, 50/60Hz±1Hz |
Battery Type: | Rechargeable Lithium-ion battery |
Battery Capacity: | 2200mAh (option: 4400mAh) |
Battery Recharging Time: |
Maximum 6 hours for charging; |
Battery backup: | 2 hours for continuous working |
Indicator: | |
One alarm indicator | |
Power indicator | |
Battery indicator | |
QRS beep and alarm sound | |
Operating key sound | |
Interface: | |
| Parameter cable interface |
AC power input | |
| USB port |
: | RJ45 port |
Optional: | VGA output Multi-functional interface |
Data storage | |
Alarm Event Recall: | 200 groups |
Wave Recall: | 6 hours (8 waves) |
NIBP Recall: | 2000 groups |
Trend Graph: | 160 hours |
Trend Table: | 160 hours |
Power-off storage: | Yes |
Alarm: | User-adjustable High and Low 3-level Limits; |
Network: | Connected to Central Monitoring System by hardwire/wireless |
Recorder: | |
Type: | Built-in; Thermal array |
Channel: | 3 channel waveforms |
Speed: | 25mm/s,50mm/s |
Record width: | 50mm |
Real-time record time |
8s, 16s, 32s or continual |
Alarm record | Yes |
Respiration: | |
Method: | RA-LL Impedance Method |
RR measurement range: |
Adult: 0-120rpm |
Accuracy: | Pediatric/Neonate:0-150rpm 7~150rpm, ±2rpm or 2%, whichever is greater; 0-6rpm unspecified |

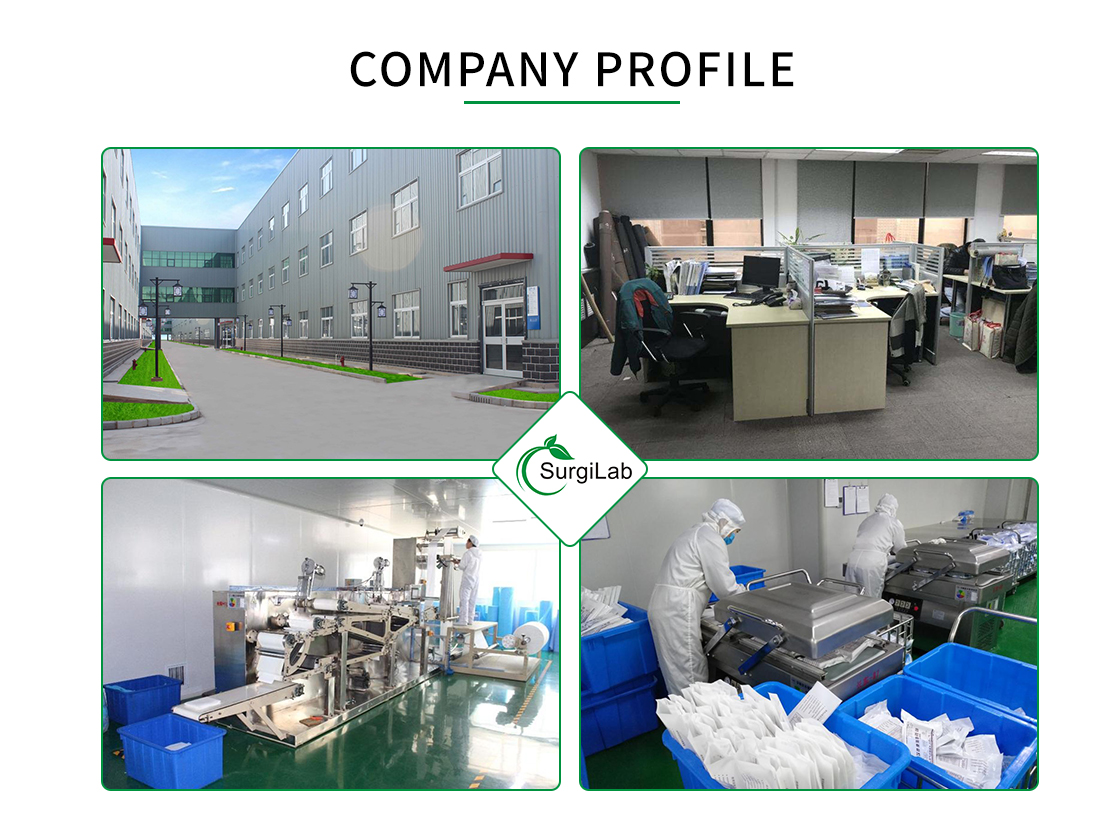

Surgilab Medical Co.,Ltd is a dedicated to providing the leading Pet & Veterinary medical equipment. We offering one-stop solution for Pet & Vet hospital. Our team has many years of industry experience, selling products to the world, such as Veterinary Cage, Veterinary Operation Table, Vet ultrsound machine and etc.
