- Product name:Veterinary monitor
- Display:3.5' color TFT
- Parameters::Spo2/Pulse Rate/NIBP/ECG/RESP/TEMP
- Demensions:145(H)*63(W)*37(D)mm
- Certification::CE, ROSH, ISO
- Warranty:12 Months
- Application:Little Animal
- Packing Size:26*15*18cm
- N.W:615g
- Properties:Diagnosis & Injection
- Place of Origin:Guangdong China
- Brand Name:Surgilab
- Model Number:SL-M3

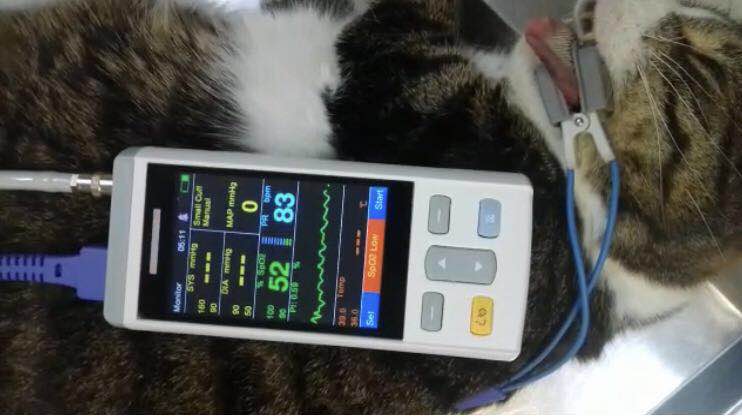

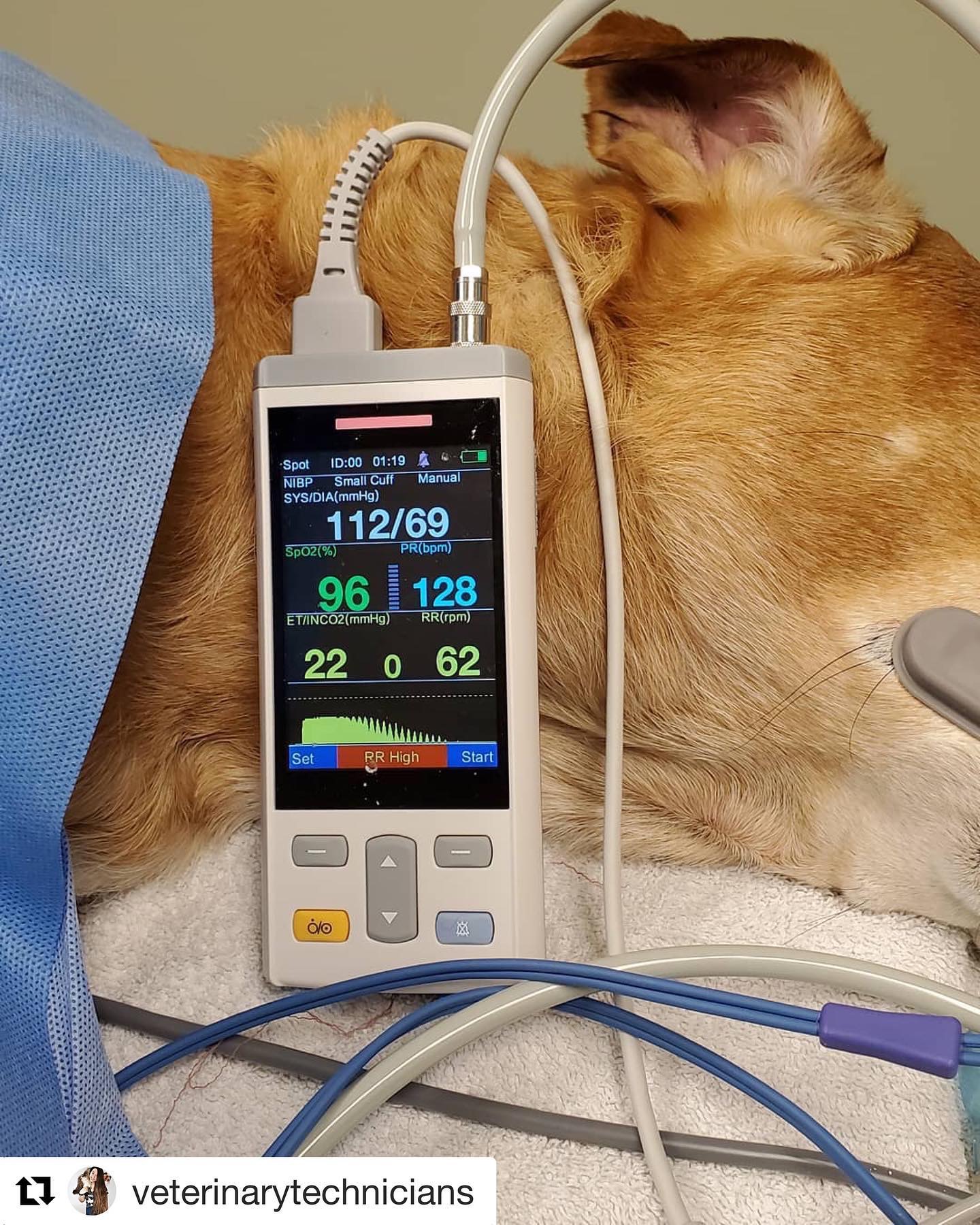

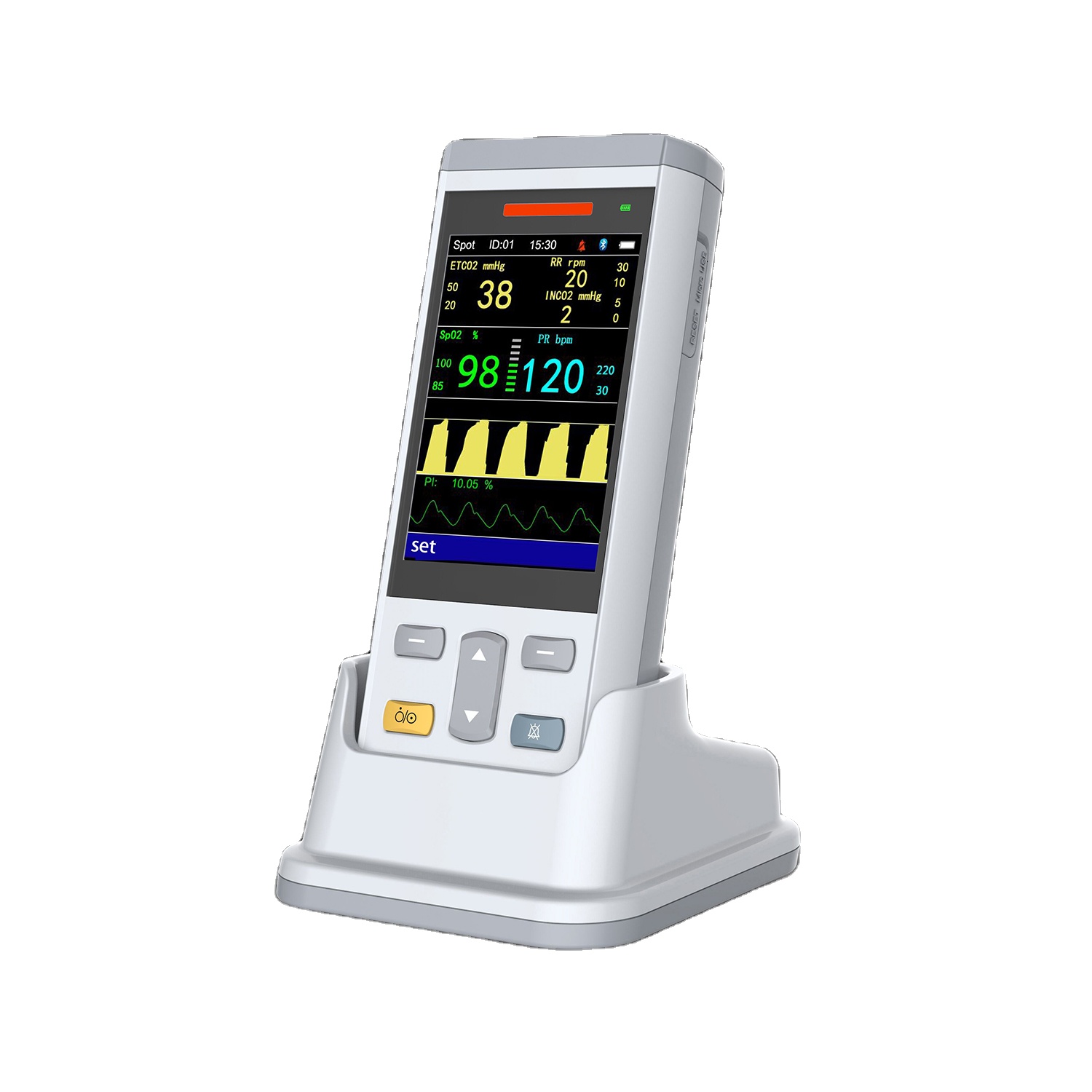

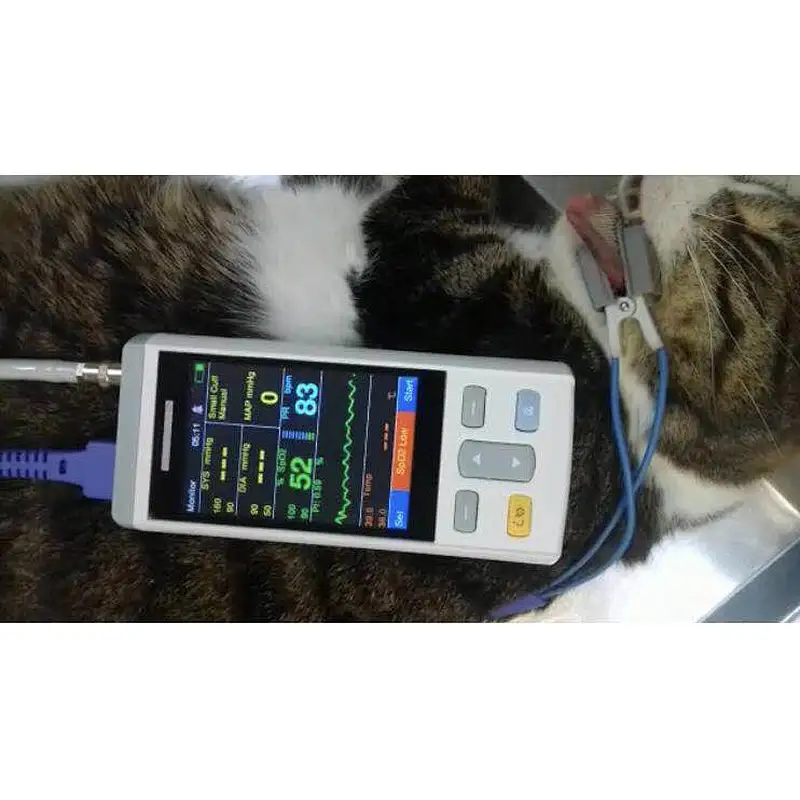

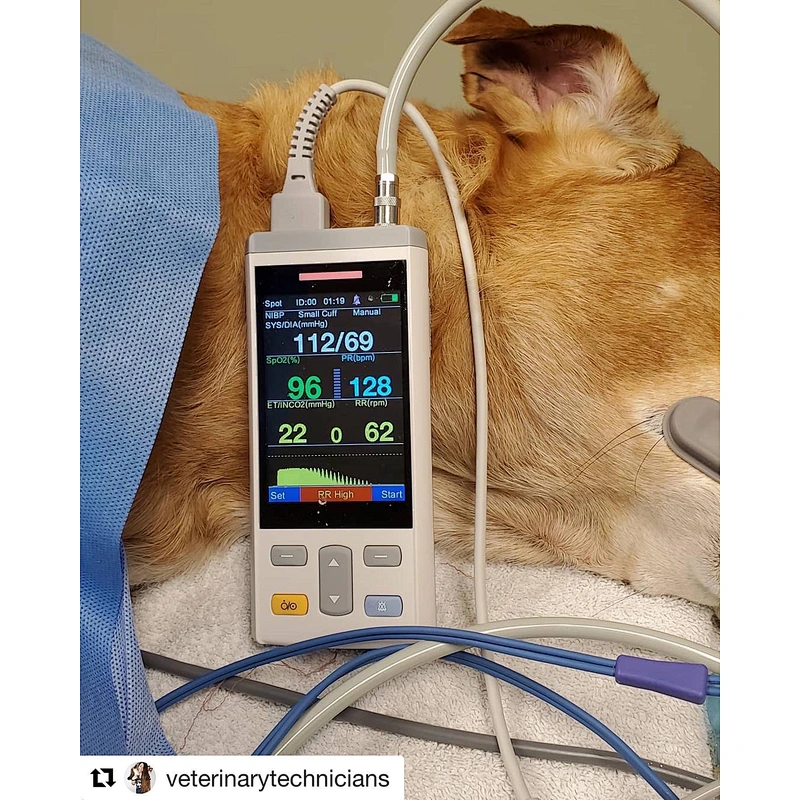

Multifunction Portable Veterinary Monitor for dog cat
Product Description
Specifications
Display:4.3 inch color TFT Resolution:320X480
Indicator: Alarm indicator, Power indicator
Trace: 1 plethysmogram waveform
Alarm: Probe off, low power, Sensor off, checking Adaper, ECG cable off and etc.
Modes: Visual and Audio
Application: Big and small animal
NIBP
The wider NIBP measurement range
Big animal | Small animal | |
SYS | 40~270mmHg | 40~200mmHg |
MEAN | 20~230mmHg | 20~165mmHg |
DIA | 10~210mmHg | 10~150mmHg |
Pulse rate range:40~240bpm
NIBP measurement accuracy:±3mmHg
Pulse rate measurement accuracy:<=2% (>=100 BPM) or 2 beats/min (<100 BPM)
Independent software protection pressure
Big animal:300mmHg Small animal:300mmHg
Independent hardware protection pressure
Big animal:320-330mmHg Small animal:320-330mmHg
Oxygen Saturation (%SpO2)
Measurement range:
measure range
SpO2:0-100%
PR:0-254bpm
Perfusion index:0.05%-20%
Accuracy range:
SpO2 saturation: 70-100%
Pulse rate: 20-254BPM
Perfusion Index:0.025%-20%
SpO2:
Big animal: ±2 (70-100%) not defined (<70%)
Small animal: ±3% (70-100%) not defined(<70%)
On motion condition: ±3%
PR: Big/Small animal: ±3%
Perfusion Index:
0.05%-20%
SpO2 saturation: 1%
Pulse rate: 1BPM
Measurement range: 25 -45 degree
Resolution:0.1 degree
Accuracy:0.1 degree
Power Type: Lithium ion battery
Operation time: 8 hours for normal operation
Operating: 0-45 degree
Starage/ Transportation: -20-65 degree
Operating: 15% to 90% noncondensing
Storage: 0% to 95% noncondensing
Operating Altitude: Up to 5000 meters
Features
1.The smallest and exquisite handheld vital sign monitor worldwide
2.Accurate measurement in 0.05% Low perfusion Index,the world leading production in the movement environment
3.Provide the parameter of PI( Perfusion Index 0.05%-20%)
4.Accurate measurement in all kind of extreme environment measurement such as neonatal and shock patients
5.NIBP adopt SAWAA(Self-Adaptive-Waveform-Amplitude –Adjust)algorithm and SAFD(Self-Adaptive-Fast-Deflation)algorithm
6.Easy operation by 3.5 inch color TFT
7.Up to 100 users ID switch
8.Two measurements mode:Spot,Monitoring
9.Data storage capabilities, support for historical data view and trend chart back for checking
10.In monitoring mode, can continuously record 48 hours of measurement data
11.In spot mode,100 users ID, each user can store 200sets data
12.Support audio and visual alarm,support to set alarm upper and lower limit values
13.Lithium ion battery power supply
Company Information
Surgilab Medical Co.,Ltd is a dedicated to providing the leading Pet & Veterinary medical equipment. We offering one-stop solution for Pet & Vet hospital. Our team has many years of industry experience, selling products to the world, such as Veterinary Cage, Veterinary Operation Table, Vet ultrsound machine and etc.
Related Products
Product Uses

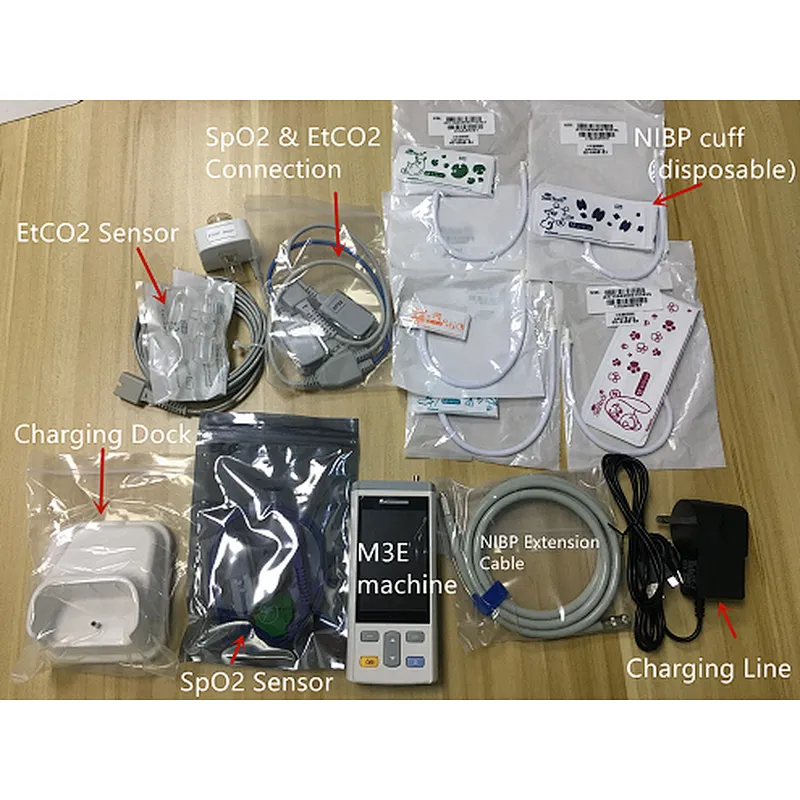

Packaging & Shipping
Certifications
Send Message
Related Products

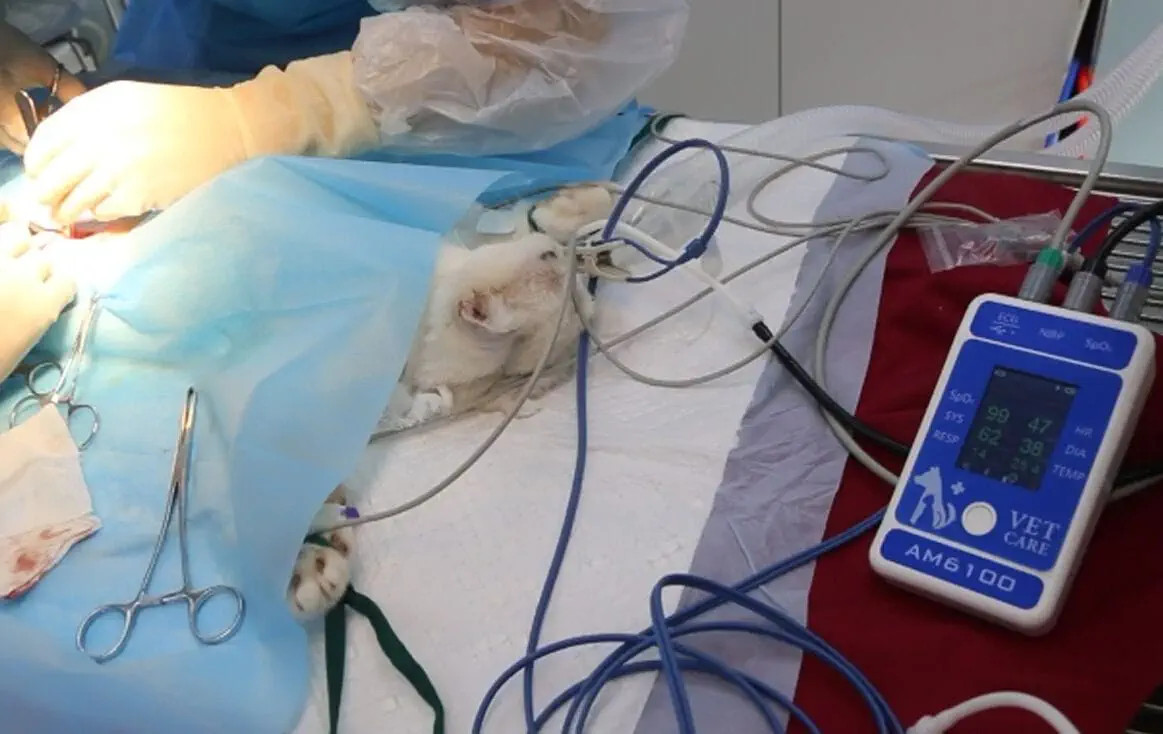

Model NO. AM6100
