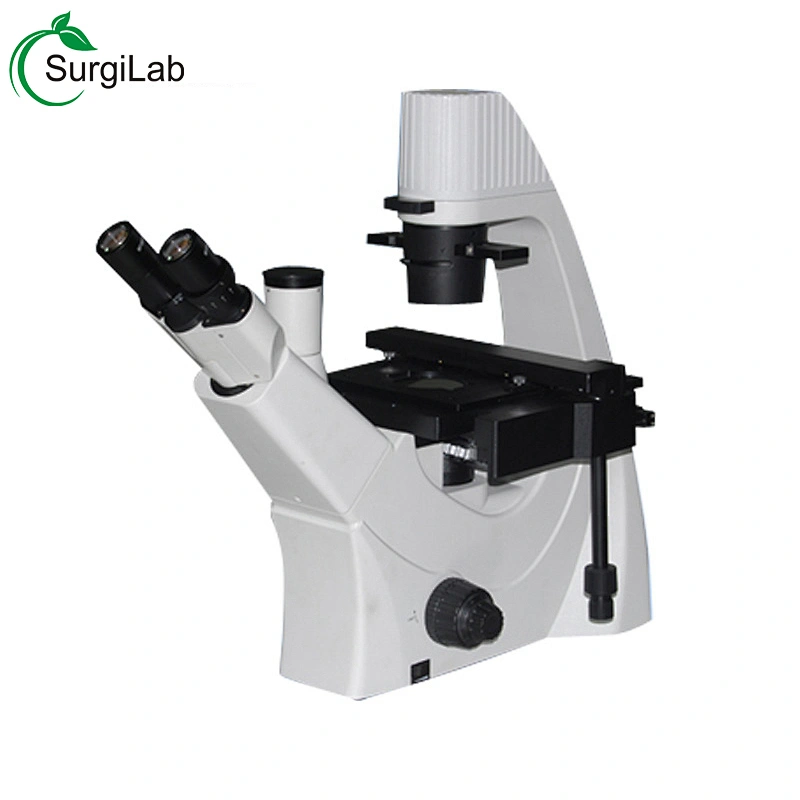

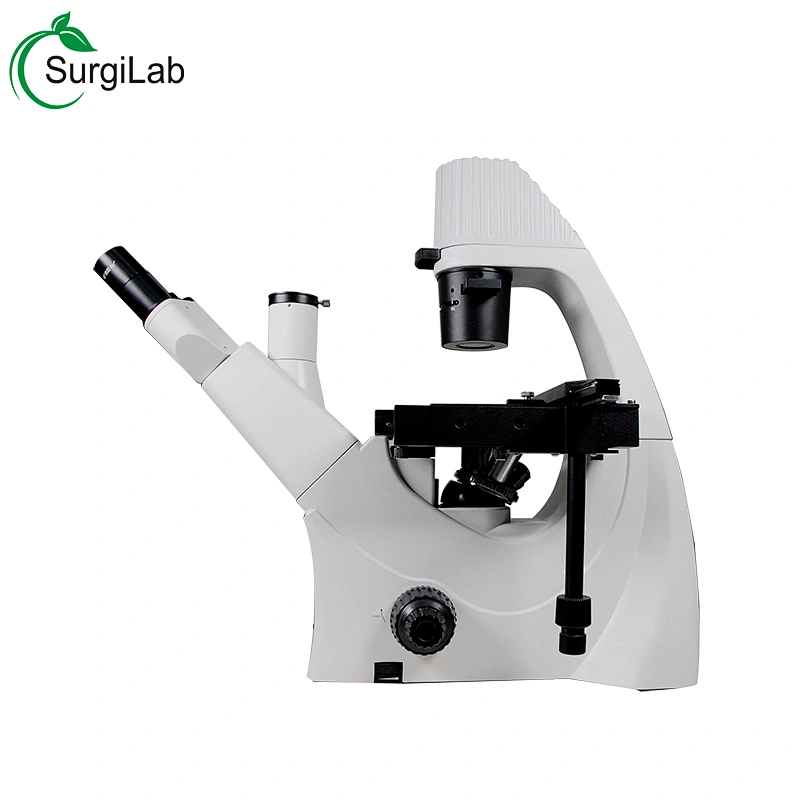

40x -400x trinocular advanced compound laboratory biological optical microscope for Animal hospital
40x -400x trinocular advanced compound laboratory biological optical microscope for Animal hospital
40x -400x trinocular advanced compound laboratory biological optical microscope for Animal hospital
40x -400x trinocular advanced compound laboratory biological optical microscope for Animal hospital
40x -400x trinocular advanced compound laboratory biological optical microscope for Animal hospital
40x -400x trinocular advanced compound laboratory biological optical microscope for Animal hospital
40x -400x trinocular advanced compound laboratory biological optical microscope for Animal hospital
40x -400x trinocular advanced compound laboratory biological optical microscope for Animal hospital
40x -400x trinocular advanced compound laboratory biological optical microscope for Animal hospital
40x -400x trinocular advanced compound laboratory biological optical microscope for Animal hospital
40x -400x trinocular advanced compound laboratory biological optical microscope for Animal hospital
40x -400x trinocular advanced compound laboratory biological optical microscope for Animal hospital
40x -400x trinocular advanced compound laboratory biological optical microscope for Animal hospital

40x -400x trinocular advanced compound laboratory biological optical microscope for Animal hospital

Model NO.
SL-XDS5
Price:
USD 1400.00-2000.00 / set
Minimum order quantity
1 set
Supply Ability
2000.0 set / Month
Country of Origin
Guangzhou, Shenzhen
Quantity:
  • Product name:Biological Microscope
  • Magnification:40x-400x
  • Viewing head:45 Inclined,trinocular
  • Application:Eductaion, Hospital, Laboratory
  • Eyepiece::WF10X
  • Nosepiece::Quintuple Nosepiece
  • Certificate::ISO 9001
  • Focusing::Coaxial coarse/ Fine focus
  • Condenser::Long working with pull board phase contrast unit
  • Illumination::9W LED
  • Certification:UL
  • Certification:Reach
  • Certification:GS
  • Customized support:OEM
  • Customized support:ODM
  • Theory:Biological Microscope
  • Drawtube:Trinocular
  • Place of Origin:Guangdong China
  • Warranty:1 years
  • Brand Name:Surgilab
  • Model Number:SL-XDS5

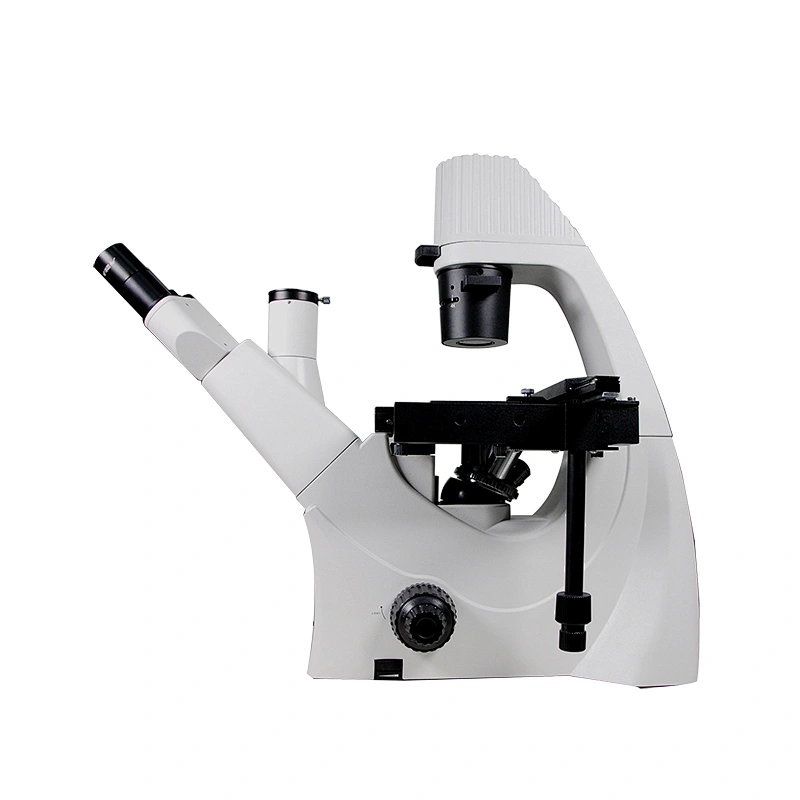

40x -400x trinocular advanced compound laboratory biological optical microscope for Animal hospital

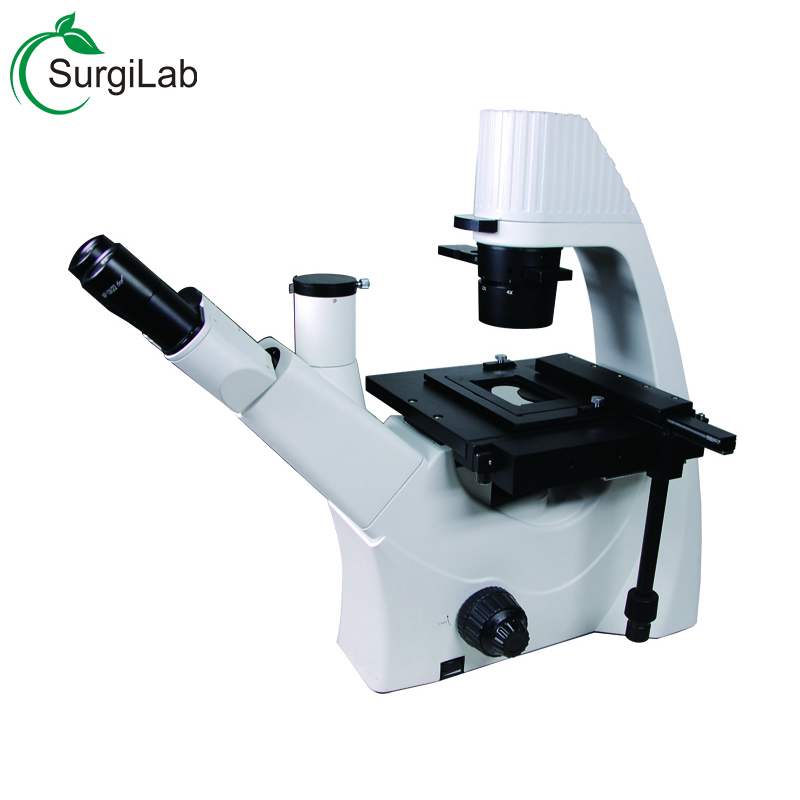

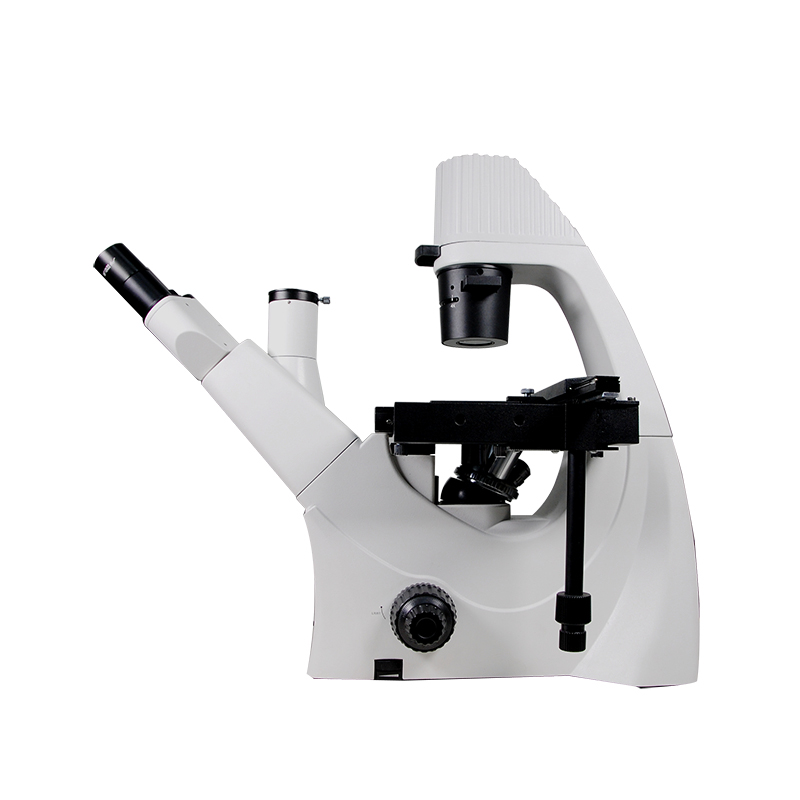

biological microscopebiology microscope labInverted biological microscope



Company Information

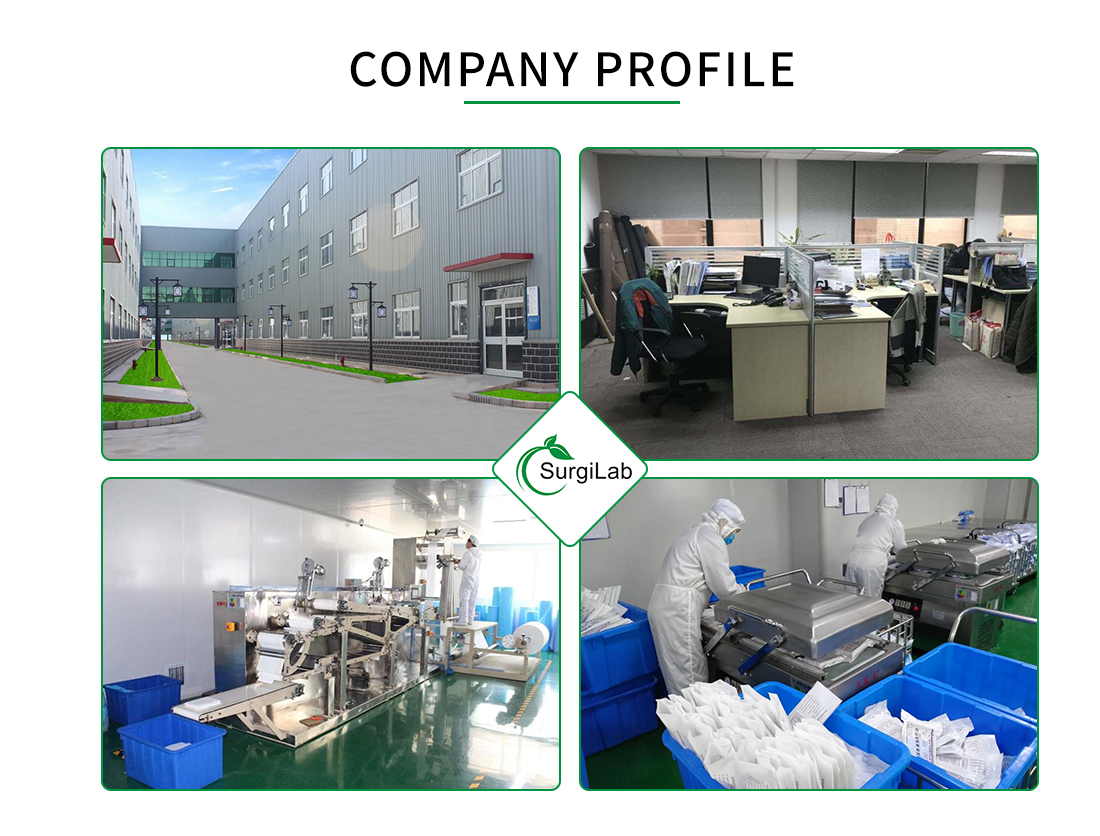

 Surgilab medical Company Profile.jpg

Surgilab Medical Co.,Ltd is a dedicated to providing the leading Pet & Veterinary medical equipment. We offering one-stop solution for Pet & Vet hospital. Our team has many years of industry experience, selling products to the world, such as Veterinary Cage, Veterinary Operation Table, Vet ultrsound machine and etc.



Product Description



SL-XDS-5 Inverted biological microscope is equipped excellent optical system including long working distance plan achromatic objective and wide field plan eyepieces.Compact and steady main fram body is embodiment for the shock resistance.The enable turning out or into condenser system is suited for objectivation in a high culcture dish.The ideal ergonomic design is adopted in this unit and have easier operation and wider space.It can be used in scientific research ,universities,medical treatment ,epidemic prevention,agriculture etc.



Specifications:





Main Parameters
Total Magnification
40X-400X
Mechanical tube length
Conjugate distance of objective
Eyepiece
Wide-field eyepiece
WF10X
field of view number φ22mm
Eyepiece interface φ30mm
Parfocal distance 10mm
Centering telescope
Eyepiece Tube
Inclined 45°,can be shot in 100%light flux,interpupillary distance:48-75mm
Objective
Magnification
N.A.
Working distance(mm)
Thickness of cover
Remarks
10x
0.25
4.27
1.2

20x
0.4
8
1.2

40x
0.6
3.5
1.2

Phase-contrast
10x
0.25
4.27
1.2
PHP2
Nosepiece
Quintuple,Five holes
Focus system
Coaxial coarse/fine focus,with tension adjustable and up stop,minimum division of fine focusing is 2μm.Effective distance 11mm
Condenser
Long working distance condenser ,working distance :70mm,and with pull board phase contrast unit
Stage
Mechanical Stage,size:300mm×170mm,moving range:75mm(longitudinal)×132.5mm(transvesve)
Culture dish size
circular:φ28mm-100mm,Thickness≤1.2mm
quadrate:W≤100mm,L≤130mm,Thickness≤1.2mm
Phase-contrast condenser
Sliding phase contrast equipment,center adjustable
Illumination
9W LED,adjustable brightness
Filter
Frosted grass and blue filter
Accessory
hexagonal socket wrench(M4)

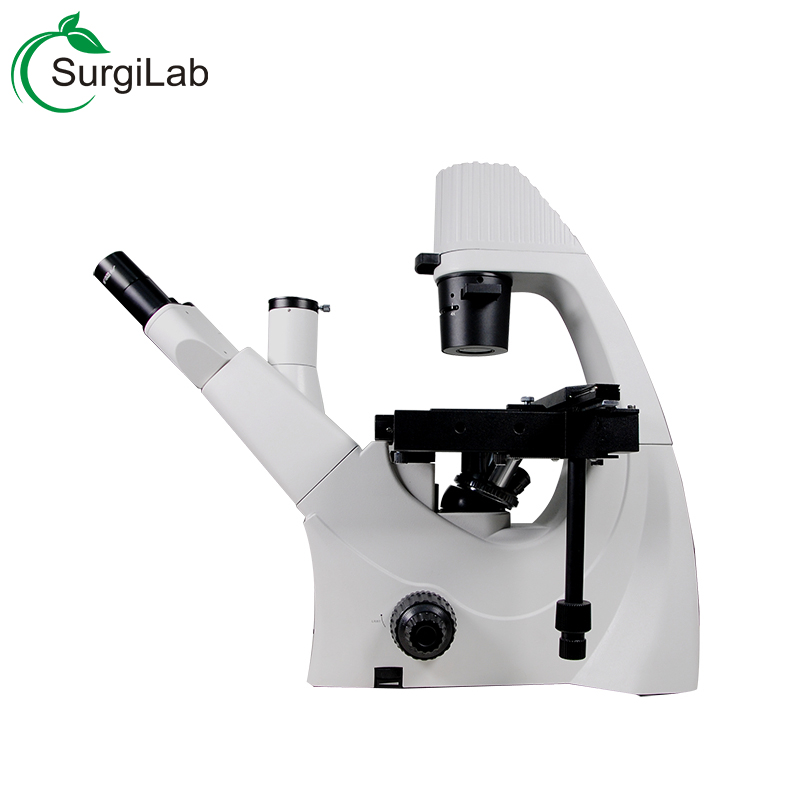

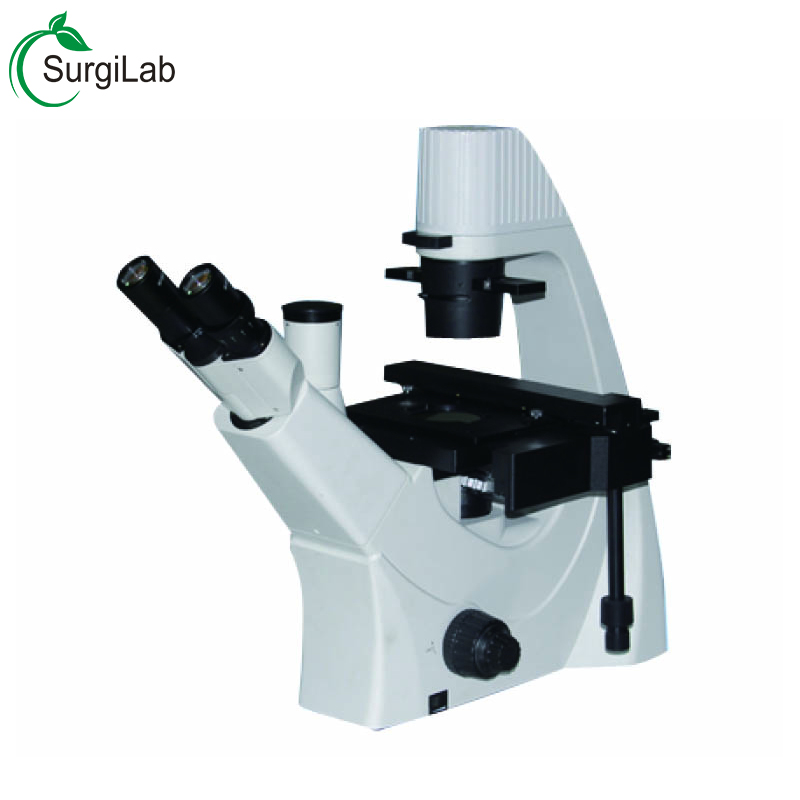

biology microscope lab






Related Products

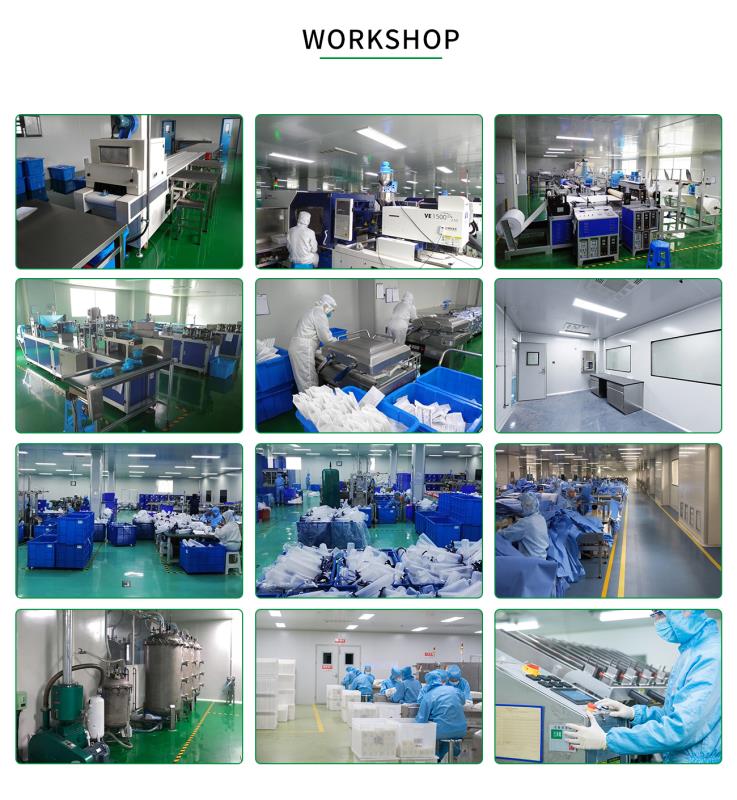

 Our-ProductSurgilab medical company Work shop.jpg

Product Uses

 1611301653(1).jpg1611301723(1).jpgSurgilab medical Customer visit.jpg

Packaging & Shipping

 Dog cage Packing & Shipping.jpg



Certifications

 Surgilab Certification.jpg

FAQ



Q1: What’s your MOQ?

A: 1 Pcs is acceptable.

Q2: Do you offer OEM/ODM service?

Yes, we have rich experience in offering OEM/ODM services.

Q3:Do you have after-sales service?

A: Our after-sales team will resolve your problems in time within 24hours.

Usually The warranty is 1-2years due to different products, and We support lifetime maintaining.
1. Offer door to door service;
2. We send you free parts by courier and technical guidance by video/call;
3. We support you free training

Q4: What’s your delivery time?

A: 3-15 days, Base according to your quantity.

Q5: What’s the payment terms?

A: Payment by T/T, L/C, Western union or Alibaba Escrow. Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance, balance before shippment.

Q6: What’s your terms of delivery?

A: FOB, CFR, EXW, CIF, by air or by sea.
