- Product name:Biological Microscope
- Magnification:40x-1600x
- Viewing head:Binocular/Trinocular Head Inclined
- Application:Eductaion, Hospital, Laboratory
- Eyepiece::PL10X, 16X
- Objective::4X/10X/40X/100X
- Certificate::ISO 9001
- Warranty:1 Year
- Condenser::Abbe NA=1.25
- Illumination::6V/20W Halogen Lamp or LED
- Certification:Reach
- Certification:UL
- Certification:GS
- Customized support:OEM
- Customized support:ODM
- Theory:Biological Microscope
- Drawtube:BINOCULAR
- Warranty:1 years
- Place of Origin:Guangdong China
- Brand Name:Surgilab
- Model Number:SL-BW1000

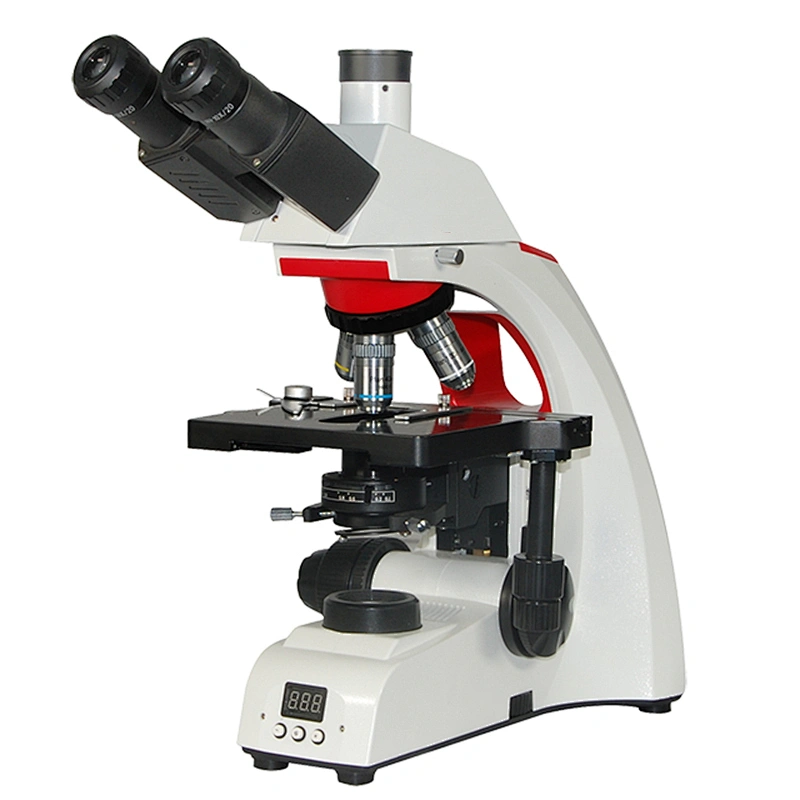

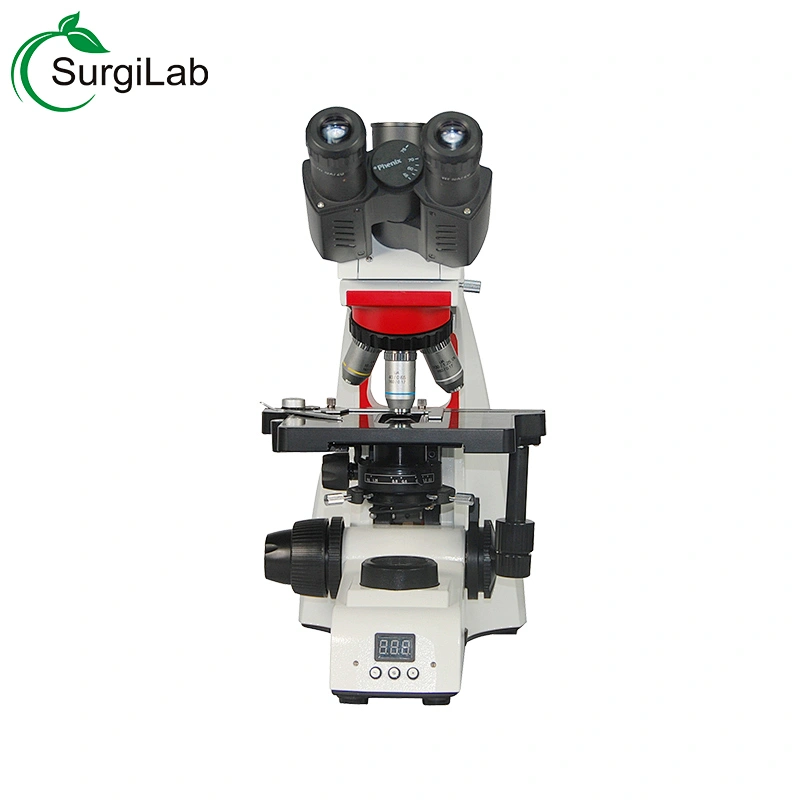

1000X binocular trinocular biological microscope with 100X oil immersion objective
Surgilab Medical Co.,Ltd is a dedicated to providing the leading Pet & Veterinary medical equipment. We offering one-stop solution for Pet & Vet hospital. Our team has many years of industry experience, selling products to the world, such as Veterinary Cage, Veterinary Operation Table, Vet ultrsound machine and etc.

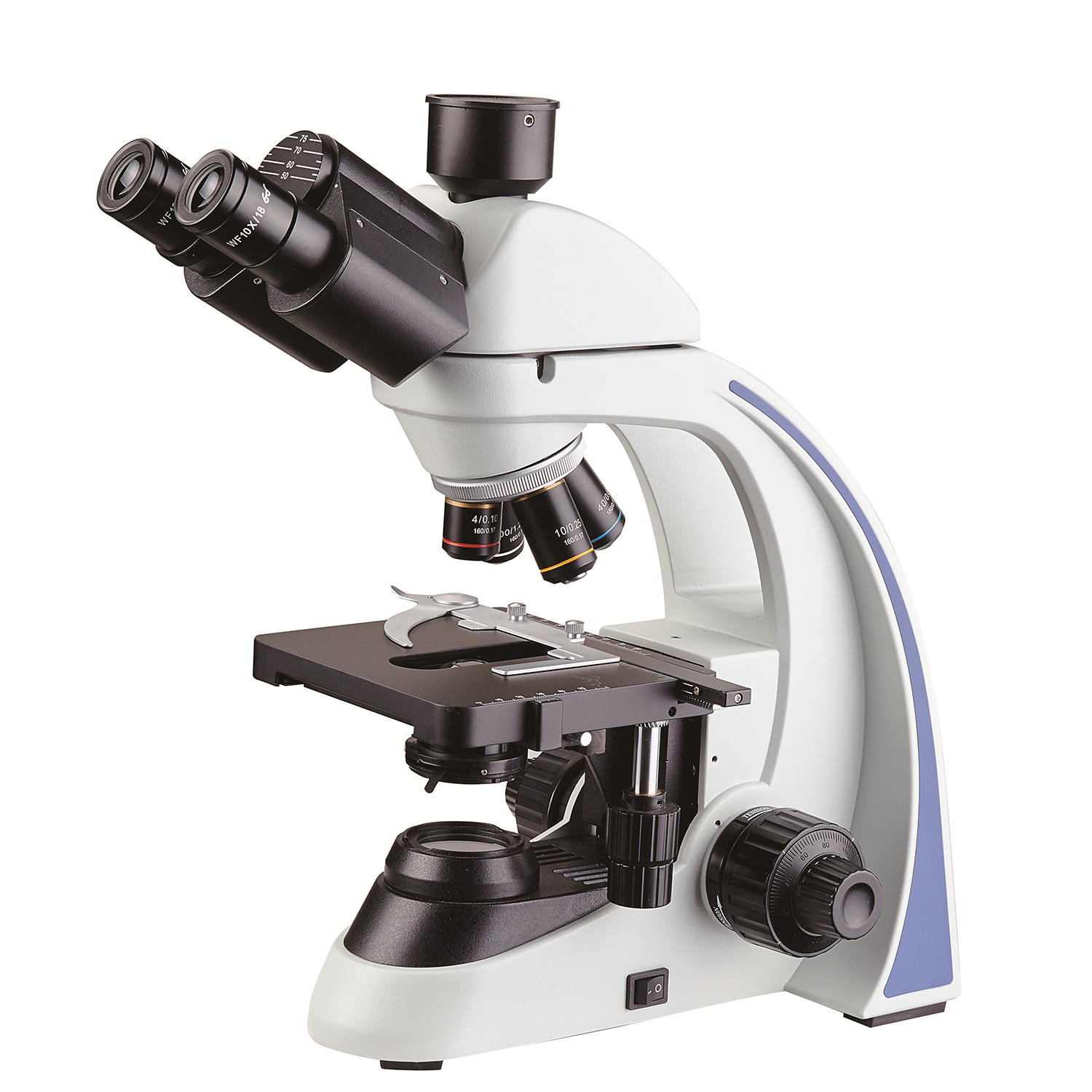

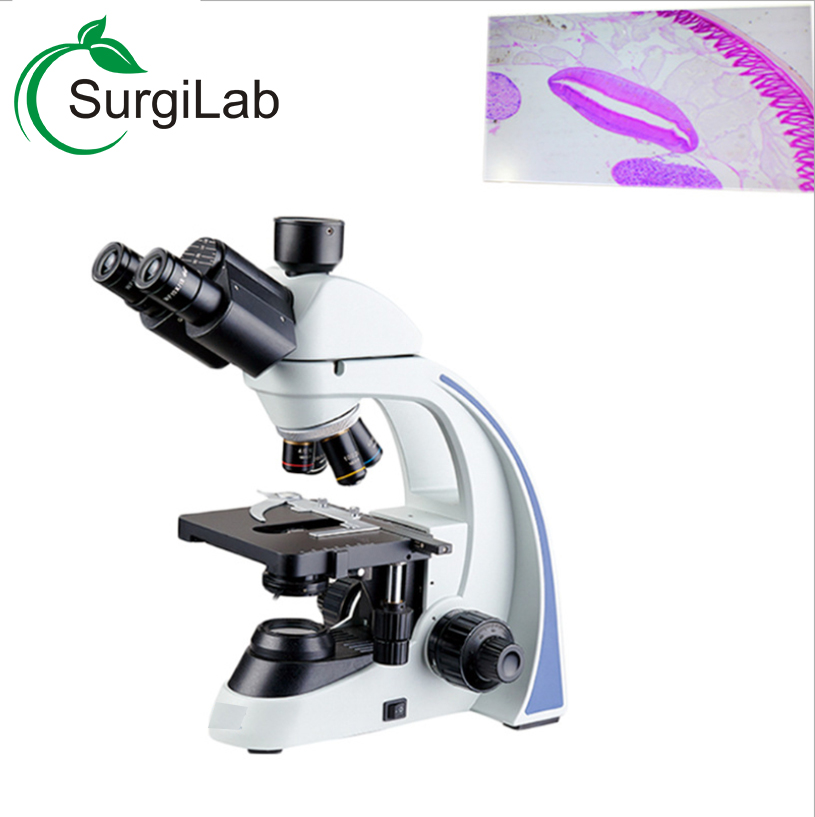

SL-BW1000 trinocular biological microscope is an advanced compound microscope that is specially designed for professional applications in clinical offices and research laboratories. It comes with all the advanced features: large 3-D double layer mechanical stage, coaxial coarse & fine focusing system, and brightness-adjustable halogen illumination or LED. It offers eight levels of magnification 40X1000X-1600X. It is a perfect instrument for clinics, vets, doctors and medical school students.
Specifications:
| Application | Suited for school biological education and medical analyses area to observe all kinds of slides. They can be widely used in clinics, hospitals, schools, academic labs and scientific research department. |
| View head | Binocular/Trinocular Seidentopf Binocular Head. 30 ° inclined, 360° rotating. Interpupillary Distance 48-75mm. |
| Eyepiece | Wide field WF10X / 18mm, interpupillary distance 55-75mm. Optional : P16×/12 . |
| Objective | Plan Achromatic objective: PL4X/0.1, 10X/0.25, 40X/0.65(spr), 100X/1.25(spr.,oil). |
| Nosepiece | Quadruple Nosepiece. |
| Stage | Double Layer Mechanical Stage size: 132×142mm. Moving range: 75X40mm. |
| Focusing system | Coaxial coarse and fine adjustment. Fine Division :0.002mm. Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm. Built in focus lock mechanism to protect the drug and quick settings when changing it. |
| Condenser | Abbe NA 1.25 with Iris Diaphragm and Filter. |
| Illumination | Kohler illumination, LED lamp, brightness adjustable. Optional: Halogen Lamp . |
Warranty
2). We will cover all cost due to quality problem during the warranty period.
3). For those problems caused by improper operation or inappropriate protection or maintenance, we will repair free of charge, but for damage spare parts, we will only charge at the cost price.
4). We provide the whole using life service free of charge, but for the products that exceeds warranty period, we will only charge the replacement at cost price.
Q1: What’s your MOQ?
A: 1 Pcs is acceptable.
Q2: Do you offer OEM/ODM service?
Yes, we have rich experience in offering OEM/ODM services.
Q3:Do you have after-sales service?
A: Our after-sales team will resolve your problems in time within 24hours.
Usually The warranty is 1-2years due to different products, and We support lifetime maintaining.
1. Offer door to door service;
2. We send you free parts by courier and technical guidance by video/call;
3. We support you free training
Q4: What’s your delivery time?
A: 3-15 days, Base according to your quantity.
Q5: What’s the payment terms?
A: Payment by T/T, L/C, Western union or Alibaba Escrow. Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance, balance before shippment.
Q6: What’s your terms of delivery?
A: FOB, CFR, EXW, CIF, by air or by sea.
