- Product name:portable x ray machine veterinary
- Voltage:AC220V ± 22V
- Frequency:≥30kHz
- Maximum output power:P =5kW
- Nominal power:100kV,50mA,0.1s,5kW
- KV adjusting range:40kV~110kV, step adjustment is 1 kV
- mA adjusting range:20mA~100mA
- mAs adjusting range:0.8mAs-200mAs,shifted adjustment
- Size:290*260*230 mm
- Weigh:18.8kg
- Properties:Diagnosis & Injection
- Place of Origin:Guangdong,China
- Brand Name:Surgilab
- Model Number:SL-G05D

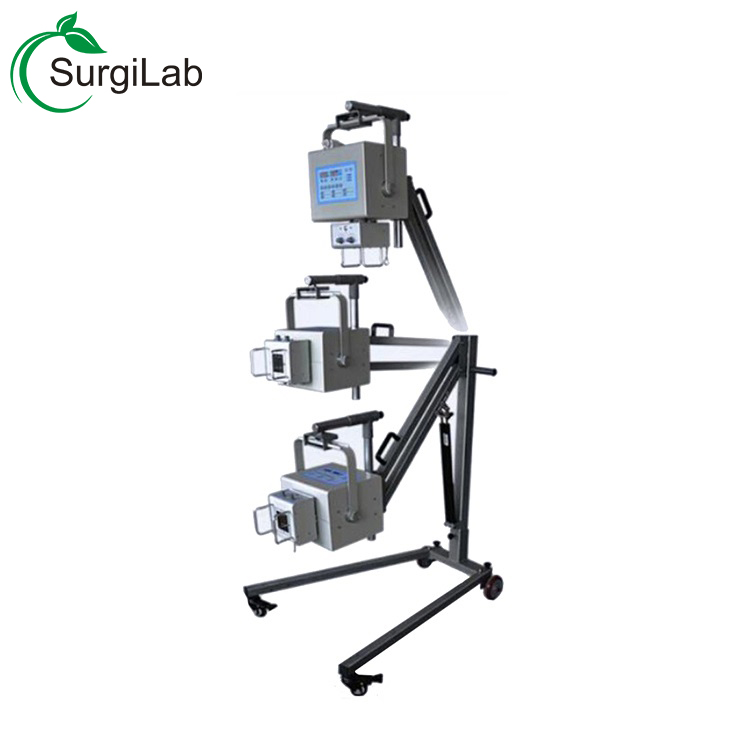

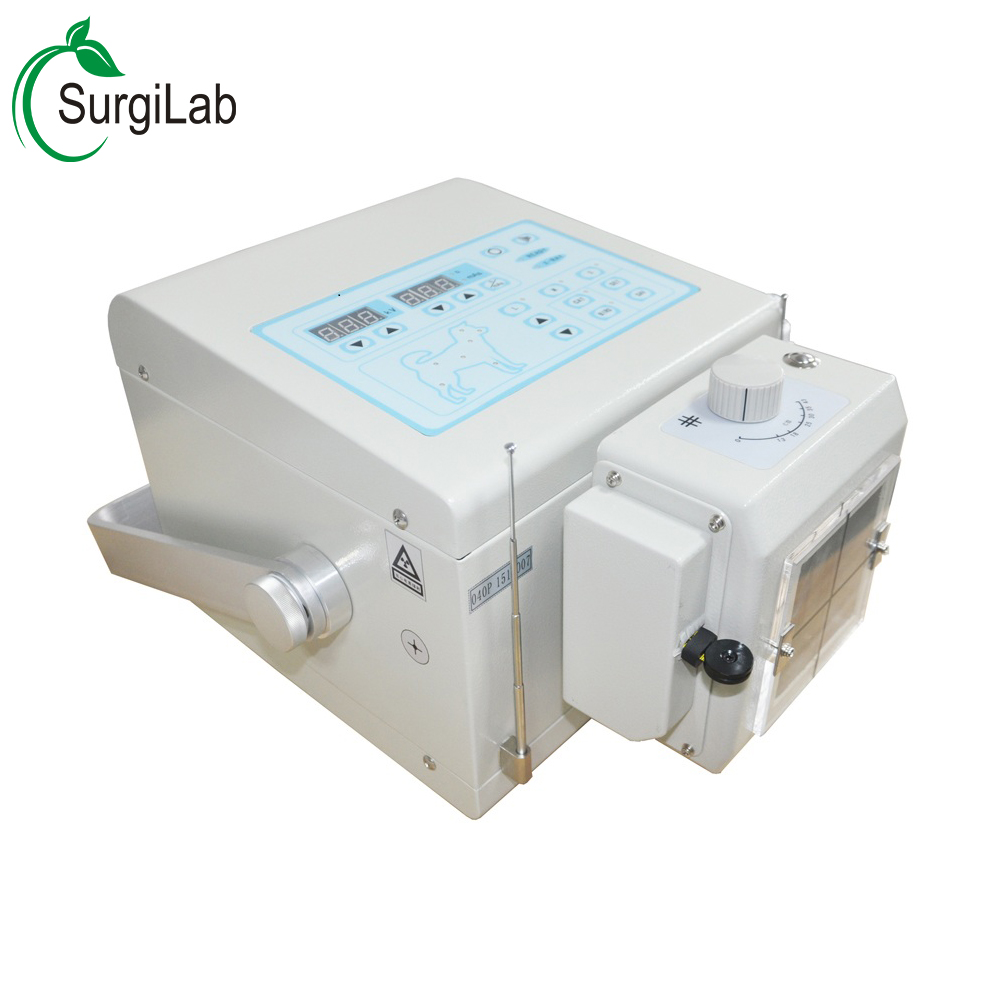

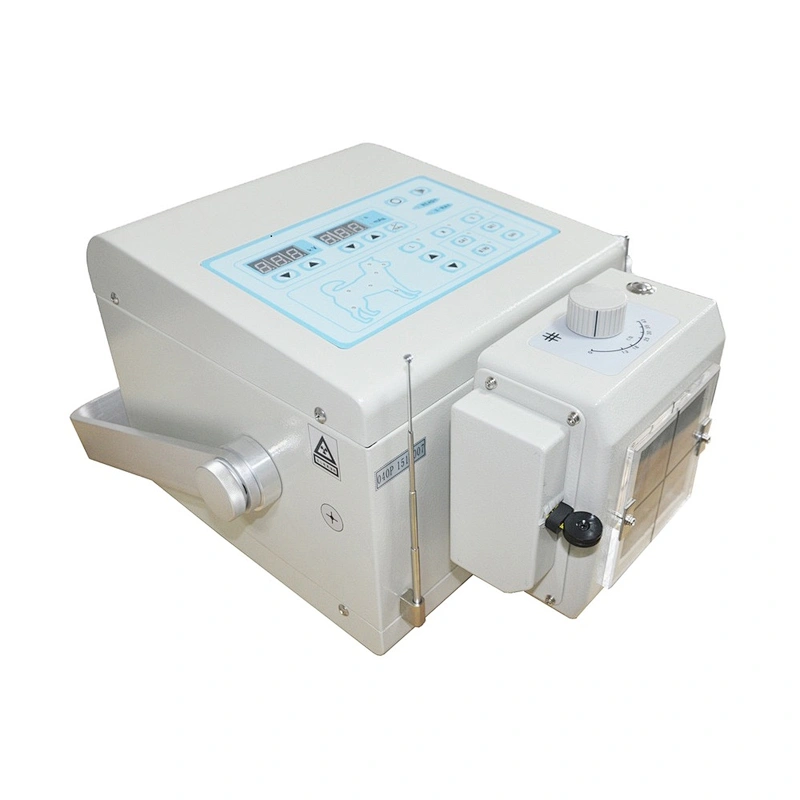

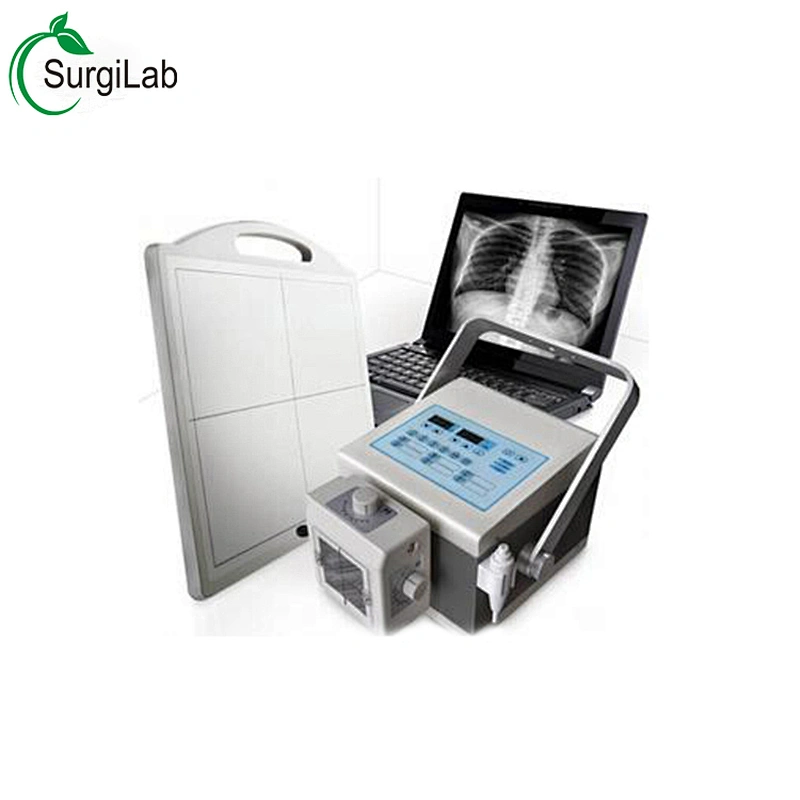

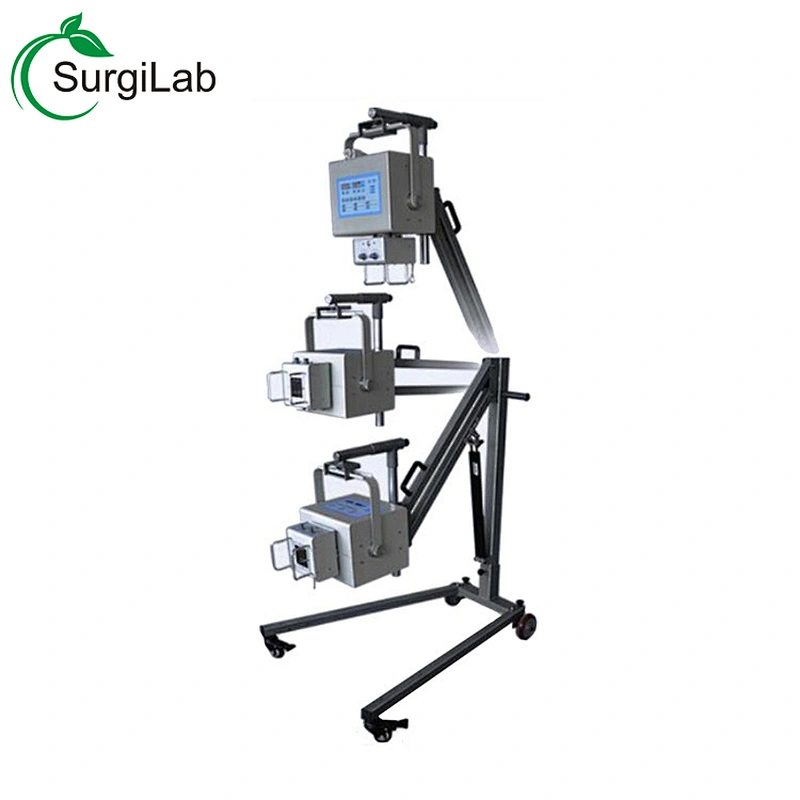

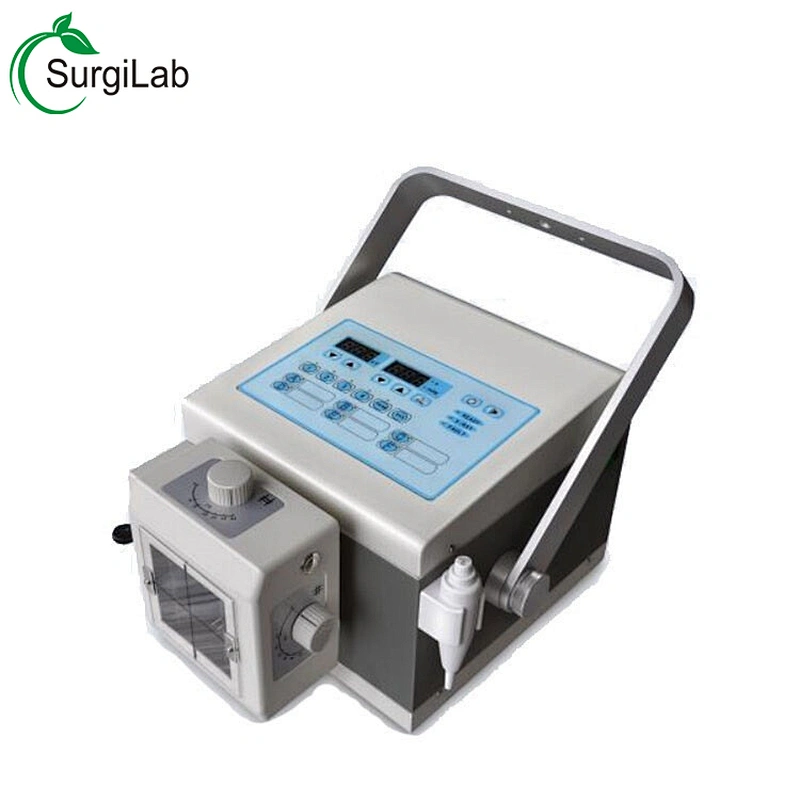

Portable Veterinary X-ray machine Vet X-ray mobile machine for Animals
Surgilab Medical Co.,Ltd is a dedicated to providing the leading Pet & Veterinary medical equipment. We offering one-stop solution for Pet & Vet hospital. Our team has many years of industry experience, selling products to the world, such as Veterinary Cage, Veterinary Operation Table, Vet ultrsound machine and etc.
Feature:
Deft and concise
6 periods of digital LED display
48 kinds of presupposed anatomy memory model choices
Accuracy control method of simulation and digital double loop
High precision control of tube voltage, tube current
Failure self-protection, self-diagnosis
Specifications:
Model | G05D |
Input power
| Voltage: AC220V ± 22V, Frequency: 50/60 Hz±1Hz Power capacity:≥5kVA; Inner resistance ≤0.5Ω |
Maximum output power
| P =5kW |
Nominal power
| 100kV,50mA,0.1s,5kW |
Frequency
| ≥30kHz |
KV adjusting range
| 40kV~110kV,step adjustment is 1 kV |
mA adjusting range
| 20mA~100mA |
mAs adjusting range
| 0.8mAs-200mAs,shifted adjustment |
Sadjusting range
| 0.01s~4s |
X ray tube
| Focus:0.6/1.8mm; Anode heating capacity:76kHU |
Size
| 290×260×230 mm |
Weight
| 18.8kg |
Accessories
| 1.Remote control and Handbrake 2.Aluminum box 3.Machine frame |
Q1: What’s your MOQ?
A: 1 Pcs is acceptable.
Q2: Do you offer OEM/ODM service?
Yes, we have rich experience in offering OEM/ODM services.
Q3:Do you have after-sales service?
A: Our after-sales team will resolve your problems in time within 24hours.
Usually The warranty is 1-2years due to different products, and We support lifetime maintaining.
1. Offer door to door service;
2. We send you free parts by courier and technical guidance by video/call;
3. We support you free training
Q4: What’s your delivery time?
A: 3-15 days, Base according to your quantity.
Q5: What’s the payment terms?
A: Payment by T/T, L/C, Western union or Alibaba Escrow. Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance, balance before shippment.
Q6: What’s your terms of delivery?
A: FOB, CFR, EXW, CIF, by air or by sea.
