- Properties:Diagnosis & Injection
- Place of Origin:CN
- Brand Name:Surgilab
- Model Number:D04
Product Overview
Quick Details
Model Number: D04
Warranty: 1 YEAR
After-sale Service: Online Technical Support
Instrument classification: Class II

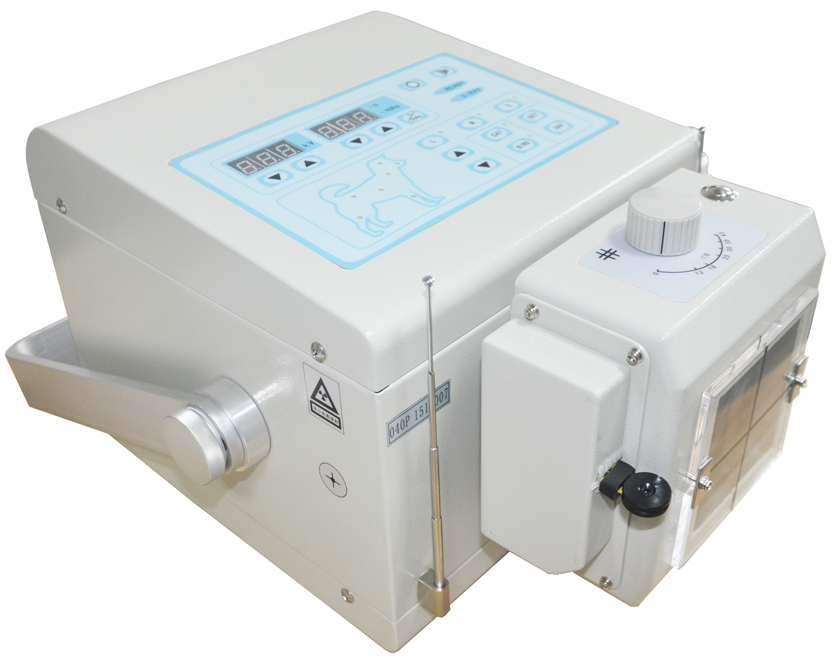

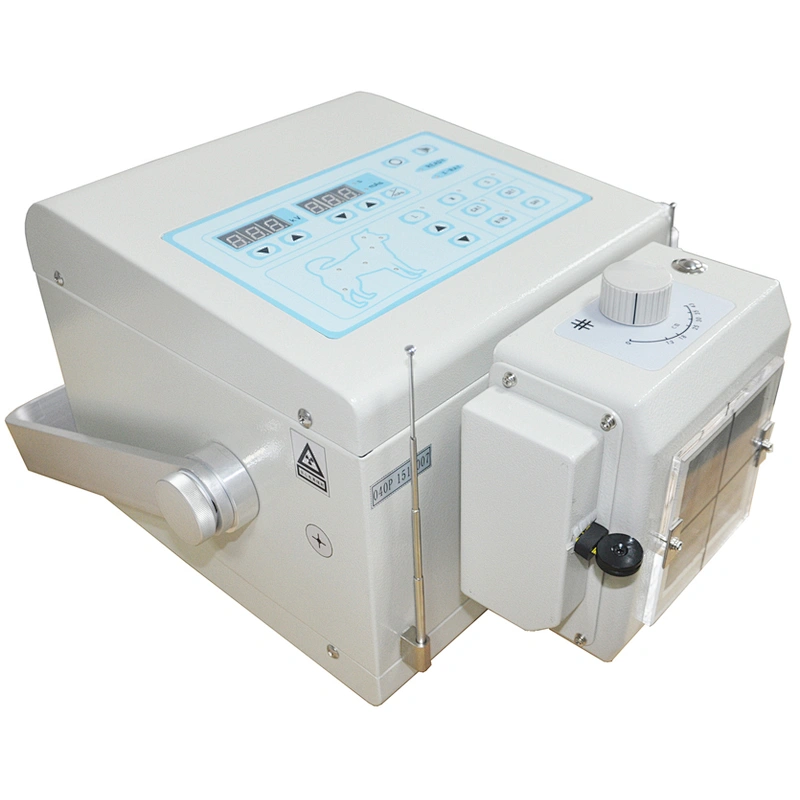

Name: portable veterinary x ray machine

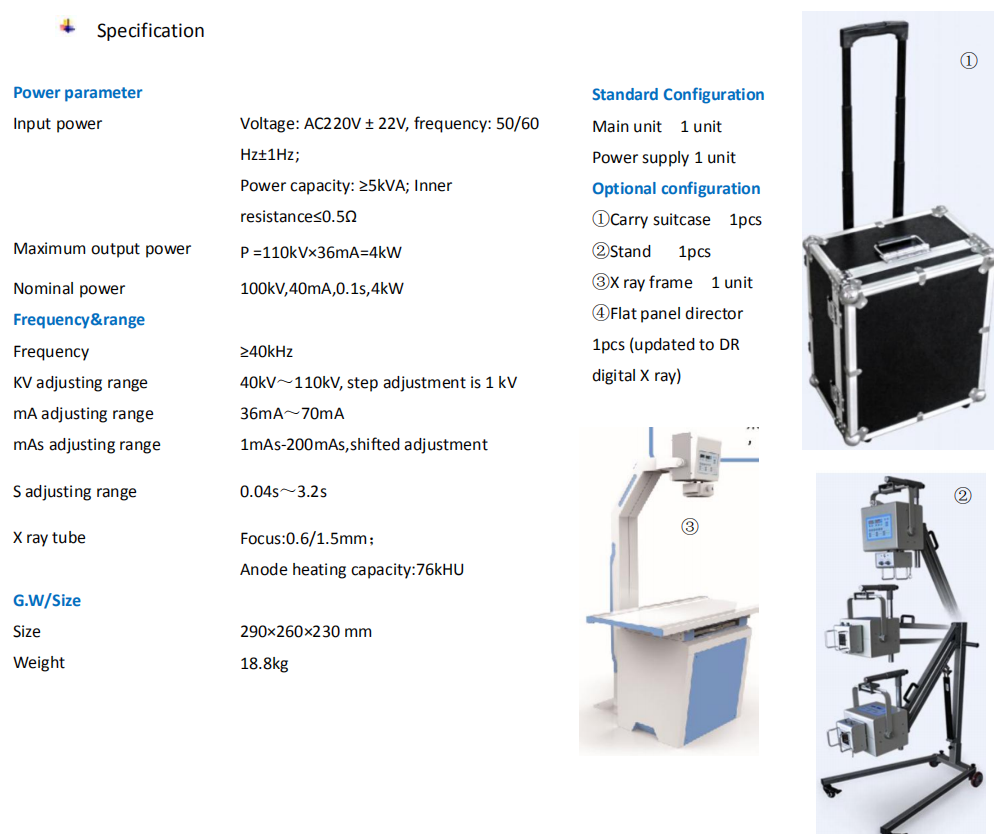

Maximum output power: P =110kV×36mA=4kW
Nominal power: 100kV，40mA，0.1s，4kW
Frequency:≥40kHz
KV adjusting range: 40kV～110kV, step adjustment is 1 kV
mA adjusting range:36mA～60mA
Warranty: 1 YEAR
After-sale Service: Online Technical Support
Instrument classification: Class II
Name: portable veterinary x ray machine
Maximum output power: P =110kV×36mA=4kW
Nominal power: 100kV，40mA，0.1s，4kW
Frequency:≥40kHz
KV adjusting range: 40kV～110kV, step adjustment is 1 kV
mA adjusting range:36mA～60mA
mAs adjusting range: 1mAs-190mAs,shifted adjustment
S adjusting range: 0.04s～3.2s
X ray tube: Focus: 0.6/1.5mm；
Anode heating capacity: 76kHU
Anode heating capacity: 76kHU
Size: 290×260×230 mm
Net Weight: 18.8kg
Accessories:1.Remote control and Handbrake

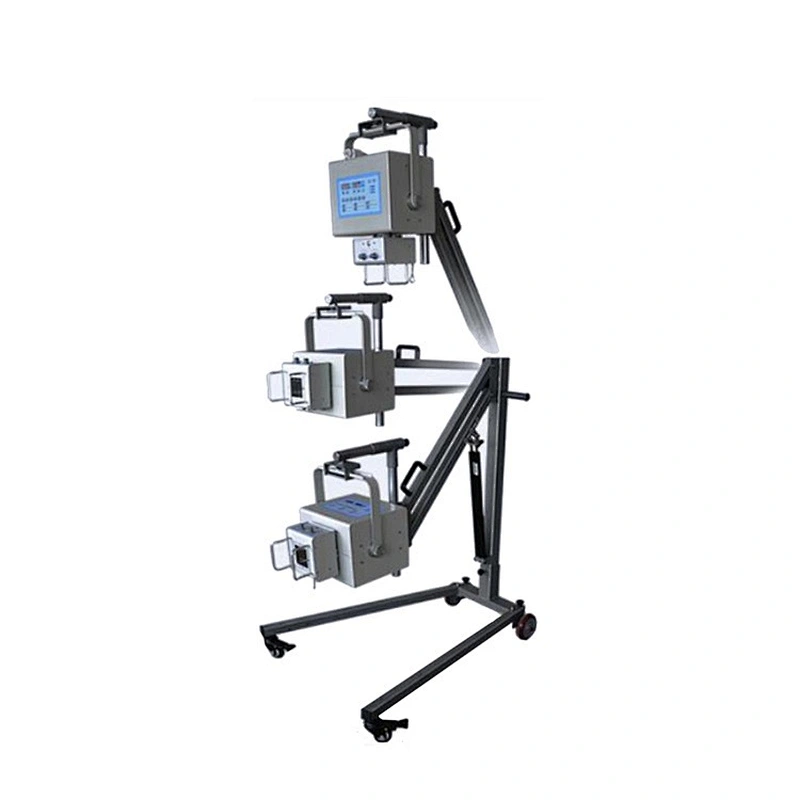

2. Machine frame
2. Machine frame
