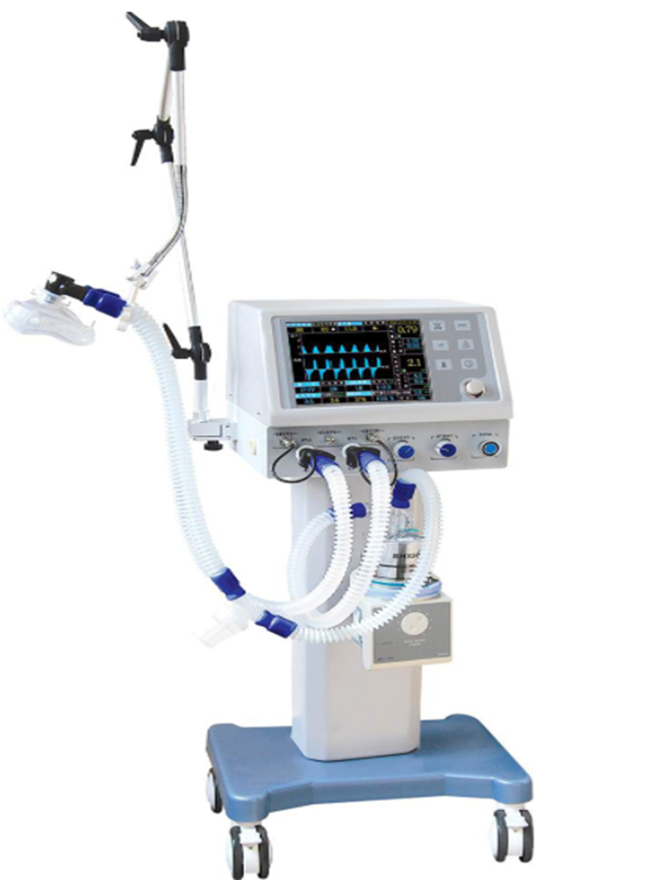

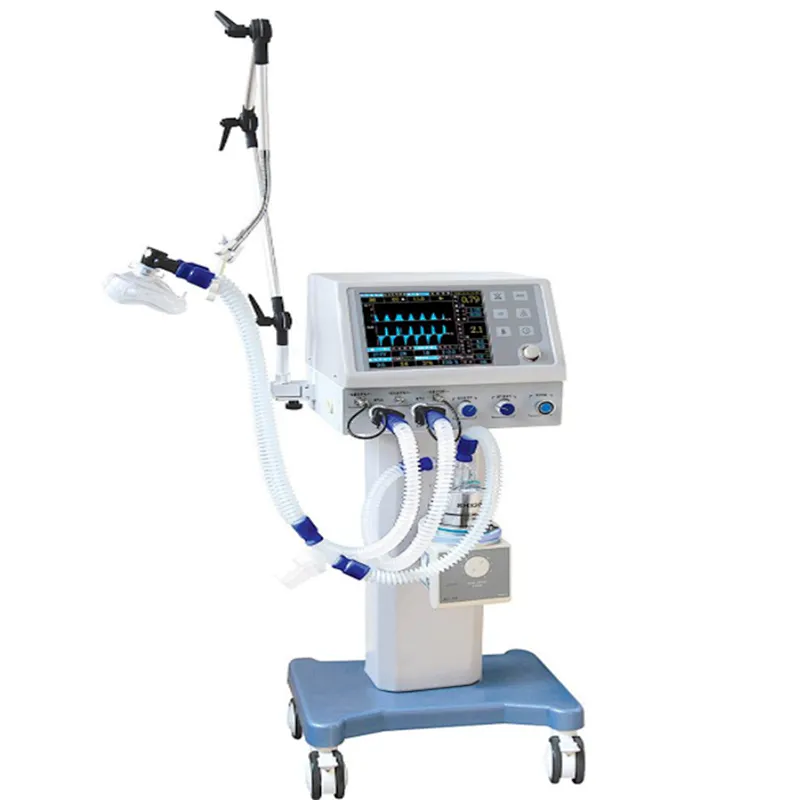

Standard Ventilator

• Min. Order:1
• Specification Code:PA-700B
• Specification Description:附件

● Display: 10.4 inch high visibility color TFT display
● Ventilation Mode: A/C, IPPV, SIPPV, IMV, SIMV, Standby, SPONT, MANUAL
● Minute Volume: Greater than or equal to 18L
● Back~up Power Supply: At least 4 hours
● Tidal Volume: Adjustable range: 50~1500ml, Display range: 0~2000ml
● Respiratory Rate: 1~99bpm
● Inspiratory/expiratory (I:E) Ratio: 4:1~1:4
● PEEP: 0~10cmH2O
● SIMV Rate: 1~20bpm
● Inspiratory Pressure Trigger: ~10~10cmH2O
● Inspiratory Plateau: Adjustable from 0~50% of inspiratory time
● Adjustable Oxygen Concentration: 45~100%
● Gas Supply Requirement: 280～600 kPa medical grade oxygen and compressed air supply
● Pressure Limit: 1.0kPa~6.0kPa
● Maximum Safe Operating Pressure: ≤6.0kPa
● Tidal Volume Alarm: Upper Limit: 10~2000ml, Lower Limit: 0~1800ml
● Airway Pressure Alarm: Upper Limit: 0.1~6kPa, Lower Limit: 0~5kPa
● Oxygen Concentration Alarm: Upper Limit: 22~100%, Lower Limit: 21~80%
