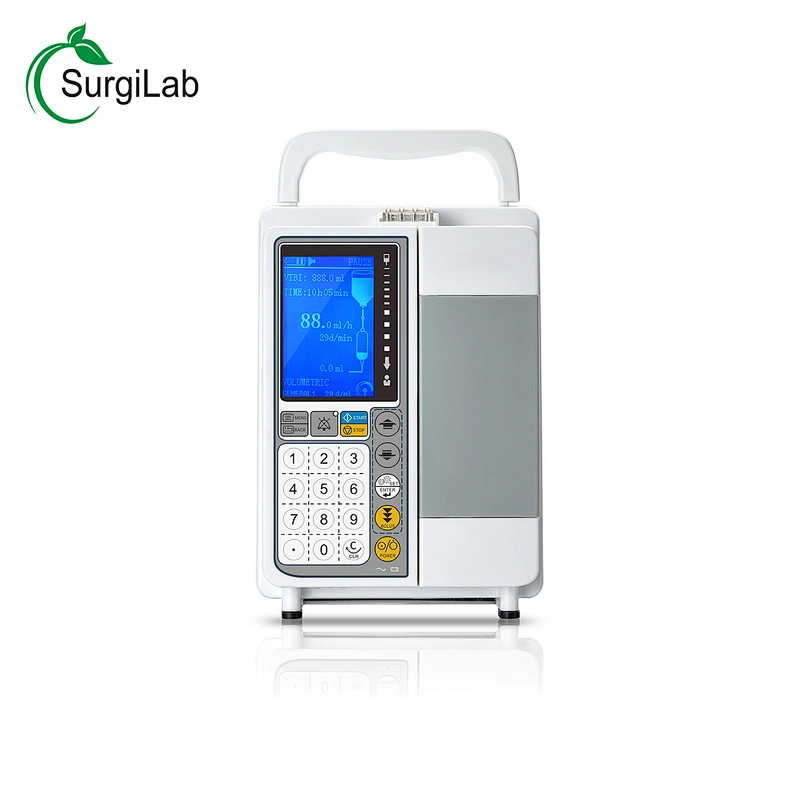

Veterinary infusion pump

Model NO.: SL-710
Price:: US $ 270.00-300.00 / set
Delivery: EXW,FOB, CIF, DDU,
Minimum order quantity: 1 set
Supply Ability: 2000 set / Week
Country of Origin: China
Stock Time: 7 Days

Quantity:

Product Description
Basic Information

Feature:

1, Double CPU safer Injection

2, Occlusion pressure release function specially good for the small vet

3, Big Brightness LCD display visually

4, Occlusion, Air-in-Line, Audio Visual Alarm Volume:10 settings

5, Numeric Keypad very user friendly

6, 2200mAh Lithium Battery Backup Life: ≥ 8Hours

Specifications:

Item	Specification
Infusion Mode	Volume Mode, Time Mode, Drug Mode, Bolus Mode
Rate Unit	ml/h,volume/time,d/min
IV Sets	Standard single use IV sets (10,15,20,60d/ml, with diameter 3.4 - 4.5mm)
Flow Rate	l.Oml/h-1200ml/h; l.Od/min-400d/min
Increment	l.0-99.9ml/h with O.lml/h; 100-1200ml/h with lml/h
Deviation	Flow Rate: ≤5% (after calibration)
VTBI	0.1-9999.9 ml
Total Volume	0-9999.9 ml
Time	1min - 99h59min
Purge Rate	600ml/h, displaying purge volume
KVO	O.lml/h-5.0ml/h, adjustable
Keypad	Numeric Keypad, user friendly
BOLUS	Bolus function available,flow rate adjustable
Night Mode	Night Mode, No operation for 5mins, LCD brightness lower automatically.
Occlusion Pressure	Occlusion pressure detection, 40- 130KPa,0-9 levels adjustable.
Detection	dynamic pressure value display.
Air bubble Detection	Ultrasonic detection, ≥50µL, Single bubble volume: 50 -300µ1,0-9 levels adjustable.
Volume	0-9 levels adjustable
Motor Anti-reverse Function	Anti-reverse function to prevent upstream
IV Set	Open System. Can accept all kinds of IV Set after calibration
Self-Testing	Self-Testing when start up and during infusing
Audio Visual Alarm Message	Air bubble, occlusion, door open, infusion finish, standby time expired, battery low, battery empty, battery disengaged, AC Power disengaged, motor error, pump error, pressure sensor error, parameter error, system abnormal
Screen	3.2'brightness LCD
Power Supply	AC: lOOV - 240V, 50Hz/60Hz, ,≤ 25VA
Battery	Rechargeable Lithium battery: DCll.lV, 2200mAh;operating time: ≥8 hours @2Sml/h, displaying remaining battery
Operation Condition	Temperature:S°C-40°C,Relative humidity:20% - 80% ,Atmospheric pressure:70-106KPa
Transportation & Storage	Temperature:-20°C-SS°C,Relative humidity:10% - 95% ,Atmospheric pressure:S0-106KPa
Classification	Type CF,Class I , IPX3,IS013485,CE,IEC60601
Dimension	145mm x 150mm X200mm
Weight	1.7kg
