- Product name:Veterinary infusion pump
- Case Material:PBT+PC

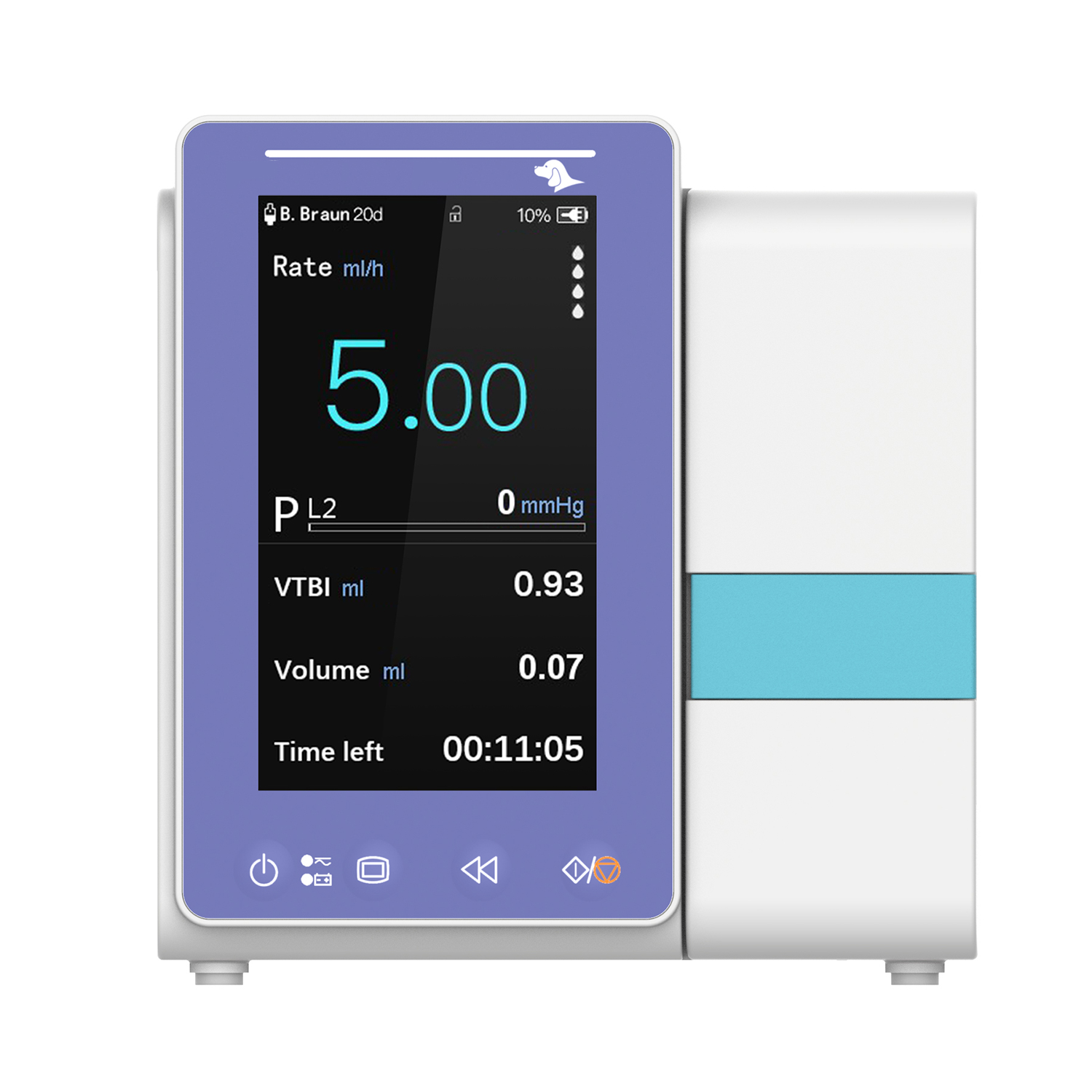

- Screen:4.3 inch color TFT screen
- Infusion Mode:ml/h (include Rate mode, lime mode), Bodyweight mode
- Flow rate accuracy:± 5%
- Flow Rate Range:0.1-2000ml/h (min. increment 0.01 ml/h)
- Classification:Class I, CF
- Waterproof:IP44
- Standard:CE Cetification
- Warrenty:18 months
- Power Source:Electric
- Warranty:1 Year
- After-sale Service:Free spare parts
- Material:Acrylic
- Material:plastic
- Shelf Life:1years
- Quality Certification:ce
- Instrument classification:Class II
- Safety standard:None
- Place of Origin:Guangdong China
- Brand Name:Surgilad
- Model Number:SL-V5

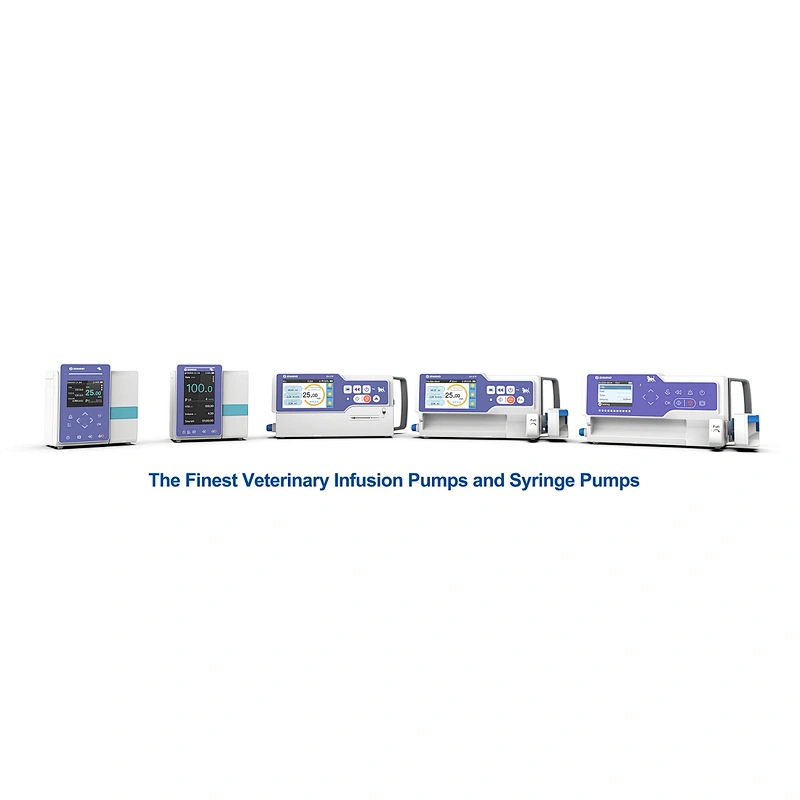

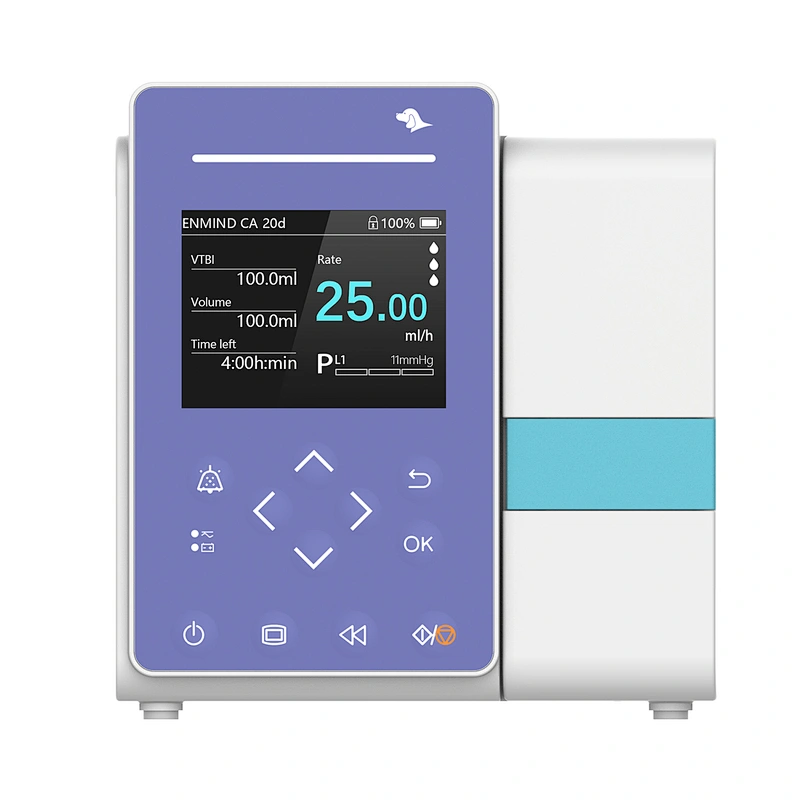

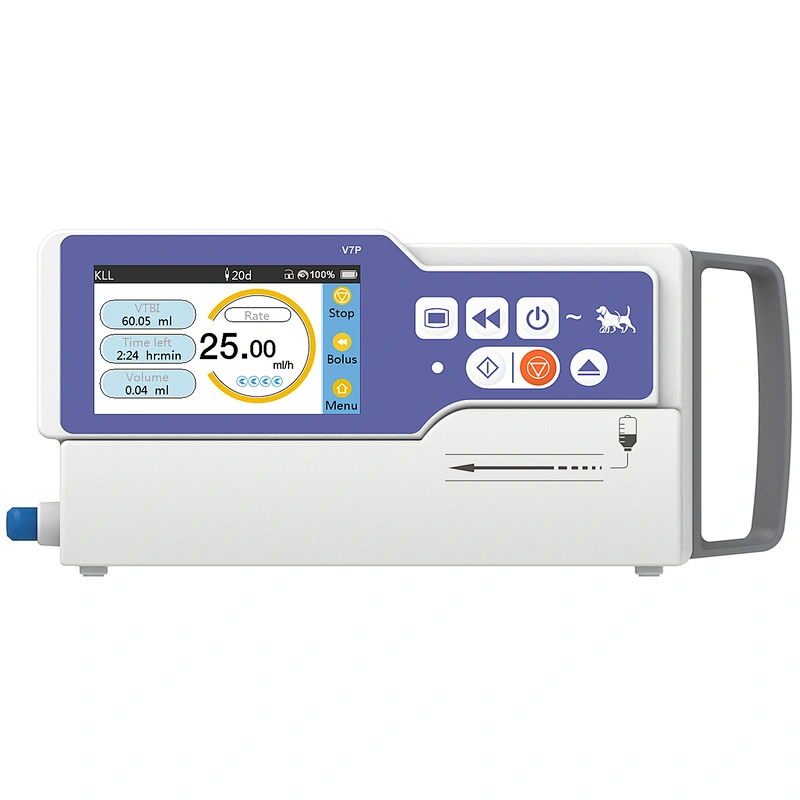

High quality Veterinary infusion pump pet infusion pump
Surgilab Medical Co.,Ltd is a dedicated to providing the leading Pet & Veterinary medical equipment. We offering one-stop solution for Pet & Vet hospital. Our team has many years of industry experience, selling products to the world, such as Veterinary Cage, Veterinary Operation Table, Vet ultrsound machine and etc.
Feature:
1. Parameter setting and editing QL directly on touch screen
2. Using any standard IV sets and, storing up to 200 editable brands
3. Resetting rate, volume, air level, occlusion level wittlout stop infusion
4. Optional WIFI connection to central monitor
5. 5 infusion modes + Micro mode control
6. Infusion rates range from 0.1 ml/h -to 2000ml/h
7. IP44 waterproof
8. Last therapy for rapid infusion start
9. 10 hours battery back-up
10. IP44 waterproof
Specifications:
| Case Material | PBT+PC |
| Screen | 4.3 inch color TFT screen |
| Infusion Mode | ml/h (include Rate mode, Time mode), Body weight, Drip, Micro |
| Accuracy | ±5% |
| Flow Rate Range | 0.1-2000ml/h (min. increment 0.01 ml/h) |
| VTBI | 0-9999.99 ml |
| KVO | 0-Sml/h adjustable (min. increment 0.01 ml/h) |
| Bolus Rate | 0.1-2000ml/h (programmed & manual bolus available) |
| Occlusion Level | 5 levels selectable (50mmHg - 900mmHg) |
| Interface | DB 15 muti-functional interface |
| Wireless | Wifi (optional) |
| Alarm Type | VTBI Infused, Occlusion, Pressure drop, Battery empty, KVO finished, Standby time end, Door Open, Single air bubble, Accumulated air bubble, Abnormal drip rate, Empty drip chamber, VTBI near end, Battery near empty, Reminder alarm, No power supply, Drop sensor connection, System error, etc. |
| Titration |
Change flow rate without stopping infusion |
| Reset total volume | Reset total infused volume to zero without stopping infusion |
| Reset occlusion level | Reset occlusion alarm level without stopping infusion |
| Reset air bubble level | Reset air bubble alarm level without stopping infusion |
| Last Therapy | Last therapies can be stored and used for rapid infusion |
| Drug Library | No less than 2000 drugs |
| DERS | Drug erro reduction system |
| Anti-Bolus | Automatic drop line pressure to reduce bolus impact after occlusion |
| Purge | Remove the air bubble |
| Screen Lock | Avoid misoperation |
| Standby Mode | Standby time adjustable |
| Micro Mode | Limit the max infusion rate to double ensure patient safety |
| DPS | Real-time pressure display in graphically and numerically |
| Bubble Detector | Adjustable. Single bubble and accumulated bubble in 1 Smin |
| Brightness | Adjustable |
| Alarm Volume | Adjustable |
| History Record | More than 5000 entries |
| Warrenty | 18 months |
| AC Power | 110V-240V, 50/60Hz |
| External DC Power | 10-16V |
| Battery | Lithium Polymer battery 2600mAh*2, more than 10 hours operating time at 25ml/h |
| Classification | Class I, CF |
| Certification | CE |
| Waterproof | IP44 |
| Dimension | 138(L)*131.5(W)*90(H) mm |
| Weight | Approx. 1.5kg (Pole clamp included) |
Q1: What’s your MOQ?
A: 1 Pcs is acceptable.
Q2: Do you offer OEM/ODM service?
Yes, we have rich experience in offering OEM/ODM services.
Q3:Do you have after-sales service?
A: Our after-sales team will resolve your problems in time within 24hours.
Usually The warranty is 1-2years due to different products, and We support lifetime maintaining.
1. Offer door to door service;
2. We send you free parts by courier and technical guidance by video/call;
3. We support you free training
Q4: What’s your delivery time?
A: 3-15 days, Base according to your quantity.
Q5: What’s the payment terms?
A: Payment by T/T, L/C, Western union or Alibaba Escrow. Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance, balance before shippment.
Q6: What’s your terms of delivery?
A: FOB, CFR, EXW, CIF, by air or by sea.
